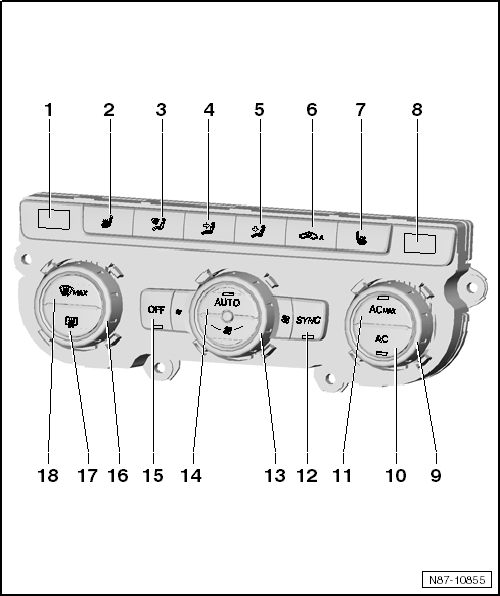

Component Location Overview - Display And Control Head, CLIMATRONIC
NOTE:
Depending on the equipment version, not all the buttons are used and the layout may vary.
- Left Temperature Display
- Shows the set temperature for the driver side
- Left Seat Heating Button
- The seat heater has 3 settings. The LED indicates the current setting.
- If no LED is illuminated, the seat heating is switched off.
- Windshield Air Distribution Button
- The LED illuminates when the setting is active
- Center Air Distribution Button
- Air distribution to the upper body via the center vents
- The LED illuminates when the setting is active
- Lower Air Distribution Button
- Air distribution in the footwell
- The LED illuminates when the setting is active
- Recirculation Mode Button
- The LED illuminates when the setting is active
- Manual and automatic recirculating air mode
- Press the button for the recirculating air mode to prevent polluted air from entering the vehicle interior.
Recirculating air mode is switched on automatically under the following conditions:
- When the operating the windshield washer system,
- When the Air Quality Sensor -G238- is activated.
- When reverse gear is engaged (this function is only active for two minutes after the engine is started).
- Blower speed on the Front A/C Display Control Head -E87- off.
- Front A/C Display Control Head -E87- "OFF"
- Right Seat Heating Button
- The seat heater has 3 settings. The LED indicates the current setting.
- If no LED is illuminated, the seat heating is switched off.
- Right Temperature Display
- Shows the set temperature for the front passenger side
- Right Temperature Control Knob
- The selected temperature will be shown in the display
- AC
Button
- The LED illuminates when the setting is active
- If the AC button is deactivated, the A/C compressor will be set close to zero delivery. If the AUTO button is active, the heating and ventilation will continue to be controlled. electronically
- MAX AC
Button
- The LED illuminates when the setting is active
- The A/C system will run with the maximum cooling output
- Sync
Button
- The LED illuminates when the setting is active
- Current driver side temperature setting is applied to the front passenger side
- Blower Adjustment Knob
- By turning the knob, the blower speed can be individually adjusted.
- If the blower speed is manually adjusted, the AUTO function is automatically deactivated.
- AUTO
Button
- The LED illuminates when the setting is active
- In auto mode, the Climatronic holds the selected vehicle temperature automatically. For this, the temperature of the blowing air, blower speed and air distribution is automated.
- OFF
Button
- Press the OFF button to turn off the heater and A/C.
- Left Thermostat Adjustment Knob
- The selected temperature will be shown in the display
- Rear Window Defogger Button
- The LED illuminates when the setting is active
- It only functions when the engine is running and switches off automatically after 10 minutes
- MAX Defrost Button
- Air sucked in from the outside is directed to the windshield causing the recirculating air mode to shut off automatically
- In order to remove fog from the windshield as quickly as possible, the air must be dehumidified at temperatures above 1.5 °C (35 °F) and the blower must be set to a higher blower speed
