Engine And Transmission, Separating: Procedure

• Engine/transmission assembly removed and mounted on :T10359  .

-- Free up the electrical wires on the bracket -arrow-.

Fig 1: Identifying Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1 and 2- and then remove the starter from the transmission.

Fig 2: Identifying Starter

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the transmission on the :VAS6100  using the : 10-222A/12  .

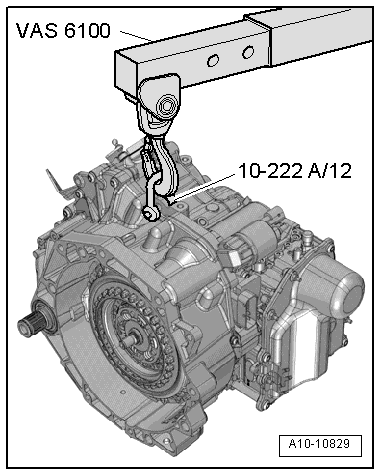

Fig 3: Identifying Shop Crane VAS6100 And Engine/Gearbox Support Shackle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1, 3, 4, 5, 6, 7 and 8- that connect the transmission to the engine.

Fig 4: Locating Alignment Sleeves

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the transmission from the engine.
