Engine Speed Sensor -G28-, REMOVING AND INSTALLING: Notes

-- Remove the noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

-- Loosen the hose clamp -3 and 5-.

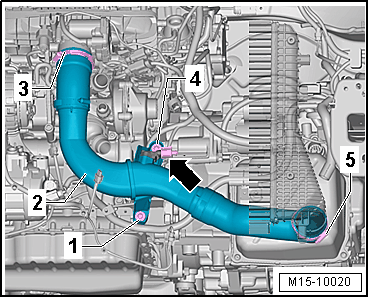

Fig 1: Identifying Senors And Clamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector from the Charge Air Pressure Sensor -G31- -arrow-.

-- Remove the bolts -1 and 4- and then remove the air duct pipe downward.

-- Disconnect the connector -1- on the Engine Speed Sensor -G28-.

-- Remove the bolt -arrow-.

Fig 2: Identifying Engine Speed Sensor And Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
