Rear Side Window, Removing And Installing, Convertible: Installing

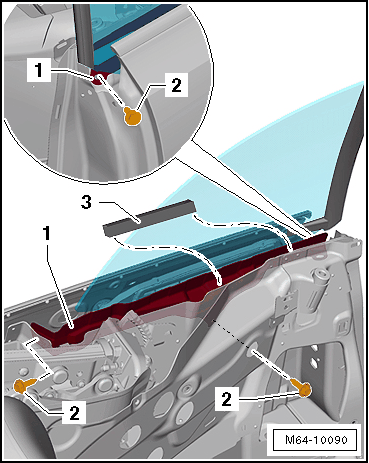

Fig 1: Identifying Bolts And Side Window

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the side window -1- from the top.

-- Adjust the side window. Refer to REAR DOOR WINDOW, ADJUSTING .

-- Tighten the bolts -2-.

-- Install the intermediate plate -1- and foam piece -3-.

Fig 2: Identifying Bolts, Intermediate Plate And Foam Piece

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts -2-.

-- Further assembly is performed in reverse order.

-- Install the inner door seal. Refer to INNER DOOR SEAL, REMOVING AND INSTALLING, CONVERTIBLE .

-- Install the trim molding on the convertible top compartment. Refer to REMOVING AND INSTALLING THE CONVERTIBLE TOP COMPARTMENT TRIM MOLDING .

-- Install the left and right side trim panel. Refer to SIDE PANEL, REMOVING AND INSTALLING .
