Height and Length, Adjusting

-- Remove the side trim panel. Refer to SIDE PANEL, REMOVING AND INSTALLING .

-- Remove the inner door seal near the side window and front bolt -2-. Refer to INNER DOOR SEAL, REMOVING AND INSTALLING, CONVERTIBLE .

-- Remove the bolts -2-.

Fig 1: Identifying Bolts, Intermediate Plate And Foam Piece

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the intermediate plate -1- and foam piece -3-.

NOTE:

The side window -2- lines up when the door window -1- is adjusted correctly.

It should be at the same height and aligned with the door window.

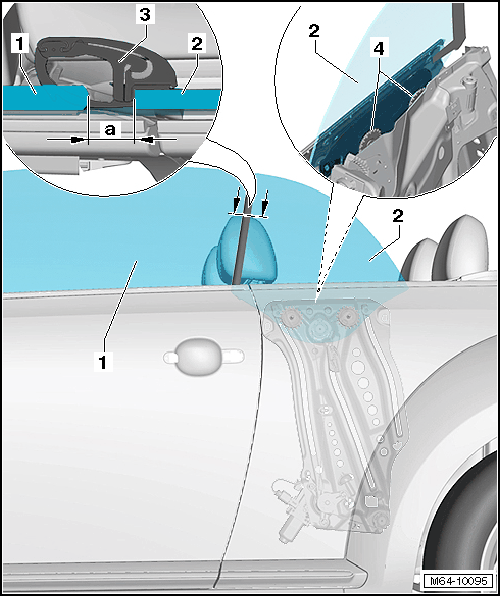

Fig 2: Identifying Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the screws -4- and adjust the height of the side window so that it is even with the door window.

-- Adjust the gap for the door window parallel to dimension -a-.

Dimension -a- = 9.0 mm ± 1 mm

-- Perform a functionality test and check the adjustment with the convertible top open and closed.

-- Assembly is performed in reverse order.
