Overview - Front Door Window

NOTE:

The illustration shows the left side. The right side is identical.

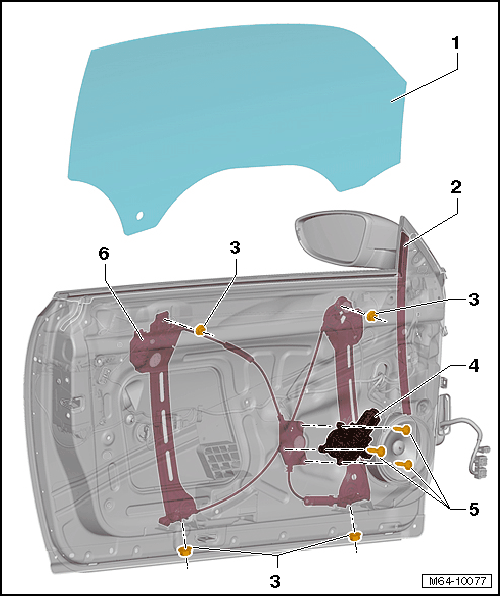

Fig 1: Identifying Front Door Window Components Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Door Window
- Adjusting. Refer to FRONT DOOR WINDOW, ADJUSTING .
- Removing and Installing . Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .
Window Guide
- Is a single component with the outer door seal
- Removing and Installing . Refer to OUTER DOOR SEAL, REMOVING AND INSTALLING .
Nut
- 8 Nm
- Quantity: 4
Window Regulator Motor
- Removing and Installing . Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
Bolt
- 3 Nm
- Note the tightening sequence. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
- Quantity: 3
Window Regulator
- Removing and Installing . Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
