Striker, Removing And Installing: Installing

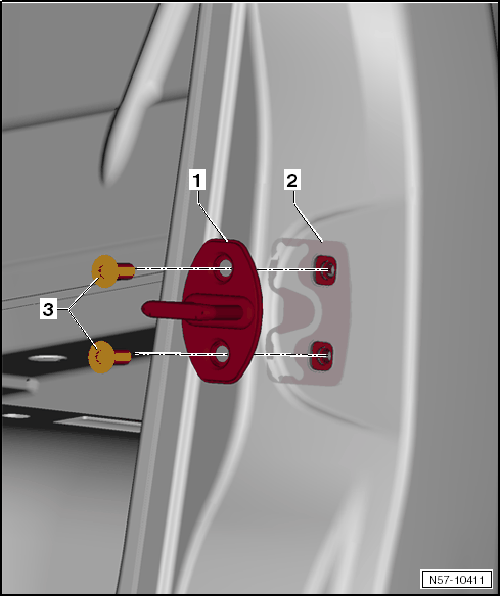

Fig 1: Identifying Striker Pin With Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the catch -1- on the B-pillar -2- and tighten the bolts -3-.

WARNING:

A catch with a curve must be installed.

The curve faces the vehicle interior.

-- Adjust the striker. Refer to STRIKER, ADJUSTING .
