Outer Cover, Removing And Installing: Installing

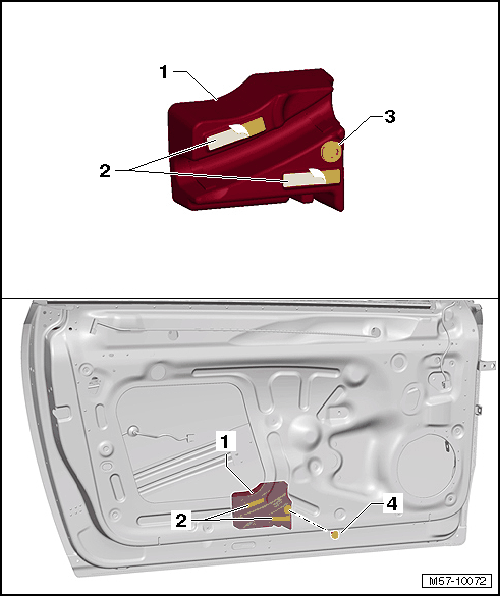

Fig 1: Identifying Outer Cover And Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clean the adhesive surfaces on the door with cleaning solution. Refer to the Parts Information.

-- Remove the peel-off backing from the tape -2-.

-- Position the outer cover -1- on the door and then press on it.

-- Install the bolt -4- into the bushing -3-.

Bolt tightening specification -4- : 0.5 Nm

-- Install the door inner cover. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .
