Mounting Bracket, Removing And Installing: Removing

-- Remove the door inner cover. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .

-- Remove the door handle. Refer to DOOR HANDLE, REMOVING AND INSTALLING .

-- Remove the bolt -1- and unclip the backing -2- from the door.

Fig 1: Identifying Bracket, Backing And Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the mounting bracket -3- from the door.

-- Loosen the clip from the mounting bracket, if equipped. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .

-- Unhook the cable -3- from the bracket -2- on the mounting bracket.

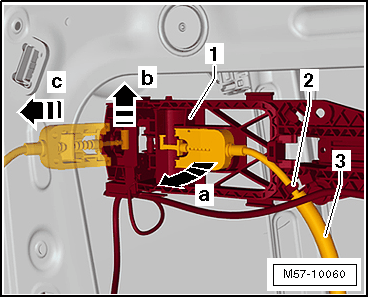

Fig 2: Identifying Cable, Mount And Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Move the mount for the cable -3- off of the mount in the mounting bracket -1- in direction of -arrow a-.

-- Lift the cable pin -3- out of the mount in direction of -arrow b-.

-- Remove the cable -3- from the mounting bracket -1- in direction of -arrow c-.
