Mounting Bracket, Removing And Installing: Installing

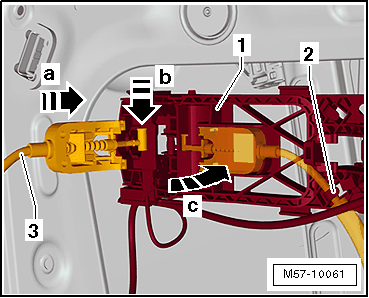

Fig 1: Identifying Cable, Mount And Mounting Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the cable -3- with the bolts in the mounting bracket -1- in direction of -arrow a-.

-- Slide the cable pin into the mount in direction of -arrow b-.

-- Tilt the cable mount -3- in the mount in the mounting bracket -1- in direction of -arrow c- until it locks.

-- Hook the cable -3- into the bracket -2- on the mounting bracket.

-- Install the clip on the mounting bracket. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .

-- Insert the mounting bracket -3- in the door.

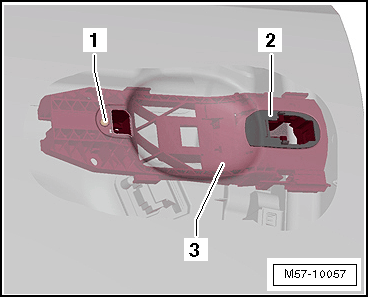

Fig 2: Identifying Bracket, Backing And Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the bolt -1- and tighten.

-- Clip the backing -2- into the door.

-- Install the door handle. Refer to DOOR HANDLE, REMOVING AND INSTALLING .

• Finally, perform a functionality test. The door will not unlock if the adjustment is incorrect and it will not be possible to open the door from outside.

-- Install the door inner cover. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .
