Lock Cylinder, Removing And Installing: Installing

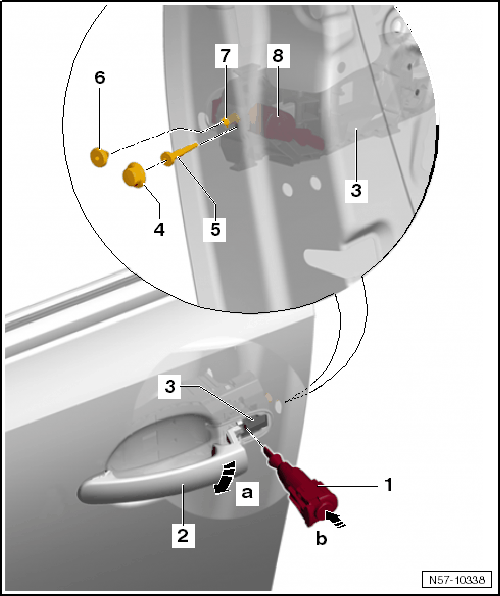

Fig 1: Identifying Lock Cylinder

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the door handle -2- from the door -8- in direction of -arrow a-.

-- Install the lock cylinder housing -1- into the mounting bracket -3- at a right angle in direction of -arrow b-.

-- Install the bolts -5 and 7- into the mounting bracket.

NOTE:

The lock cylinder housing must be pressed onto the outer door panel while installing.

Further installation is the reverse order of removal.
