Overview - Ignition Key

NOTE:

The illustrated symbols below and buttons on the key -1- may vary depending on the vehicle equipment level. Refer to Owner's Manual.

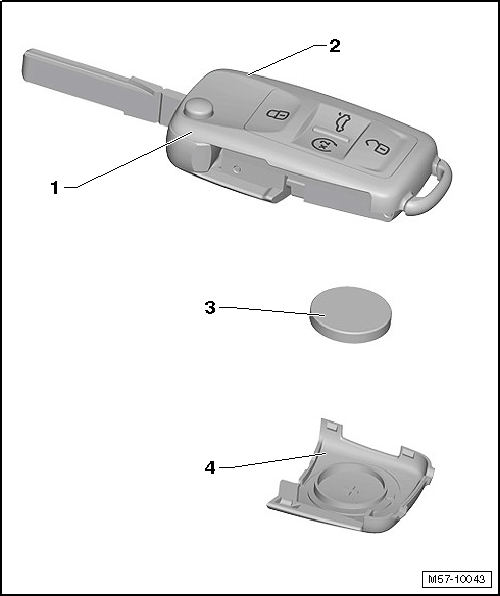

Fig 1: Battery, Folding Key With Cap - Overview
GWWM57-10043Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Key with Radio-Frequency Unit
    • The radio-frequency unit cannot be replaced separately
  2. LED
    • This LED must blink when remote control is operated.
    • If LED does not blink when using the remote control, replace the battery.
  3. Battery
  4. Cap
