Seat Heating Control Module, Removing And Installing: Removing

-- Position the seat into its highest position.

-- Switch off the ignition.

-- Disconnect the wiring harness -1- from the control module -2-.

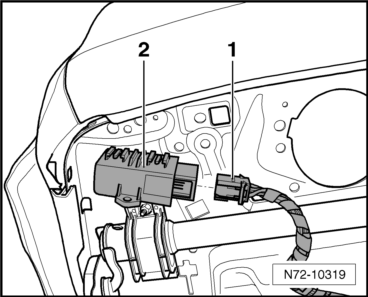

Fig 1: Disconnecting Wiring Harness From Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the control module clockwise and remove it from the seat frame.
