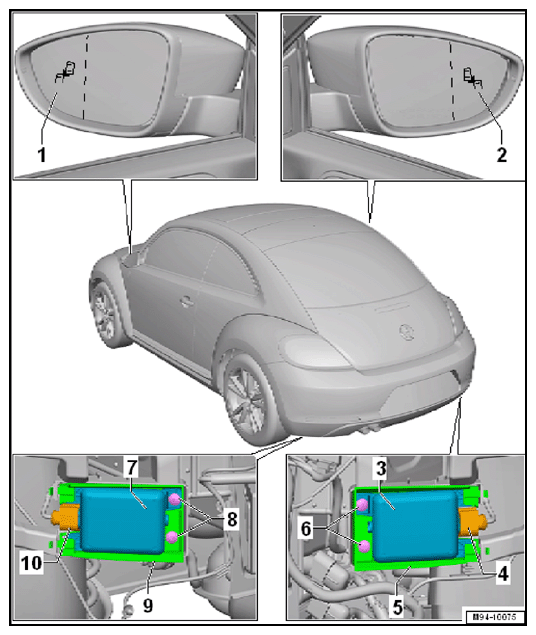

12.1 Overview - Blind Spot Detection
- Blind Spot Detection Warning Lamp in Left Exterior Mirror -K303-
- Removing and Installing. Refer to 12.2 Blind Spot Detection Warning Lamp in Left/Right Exterior Mirror -K303-/-K304-, Removing and Installing
- Blind Spot Detection Warning Lamp in Right Exterior Mirror - K304-
- Removing and Installing. Refer to 12.2 Blind Spot Detection Warning Lamp in Left/Right Exterior Mirror -K303-/-K304-, Removing and Installing
- Blind Spot Detection Control Module - J1086-
- Master
- Removing and Installing. Refer to 12.3 Blind Spot Detection Control Module/Module 2 -J1086-/-J1087-, Removing and Installing
- Calibrating. Refer to 12.4 Blind Spot Detection, Calibrating
- Connector
- Bracket
- Bolt
- 2 Nm
- Quantity: 2
- Blind Spot Detection Control Module 2 - J1087-
- Slave
- Removing and Installing. Refer to 12.3 Blind Spot Detection Control Module/Module 2 -J1086-/-J1087-, Removing and Installing
- Calibrating. Refer to 12.4 Blind Spot Detection, Calibrating .
- Bolt
- 2 Nm
- Quantity: 2
- Bracket
- Connector
