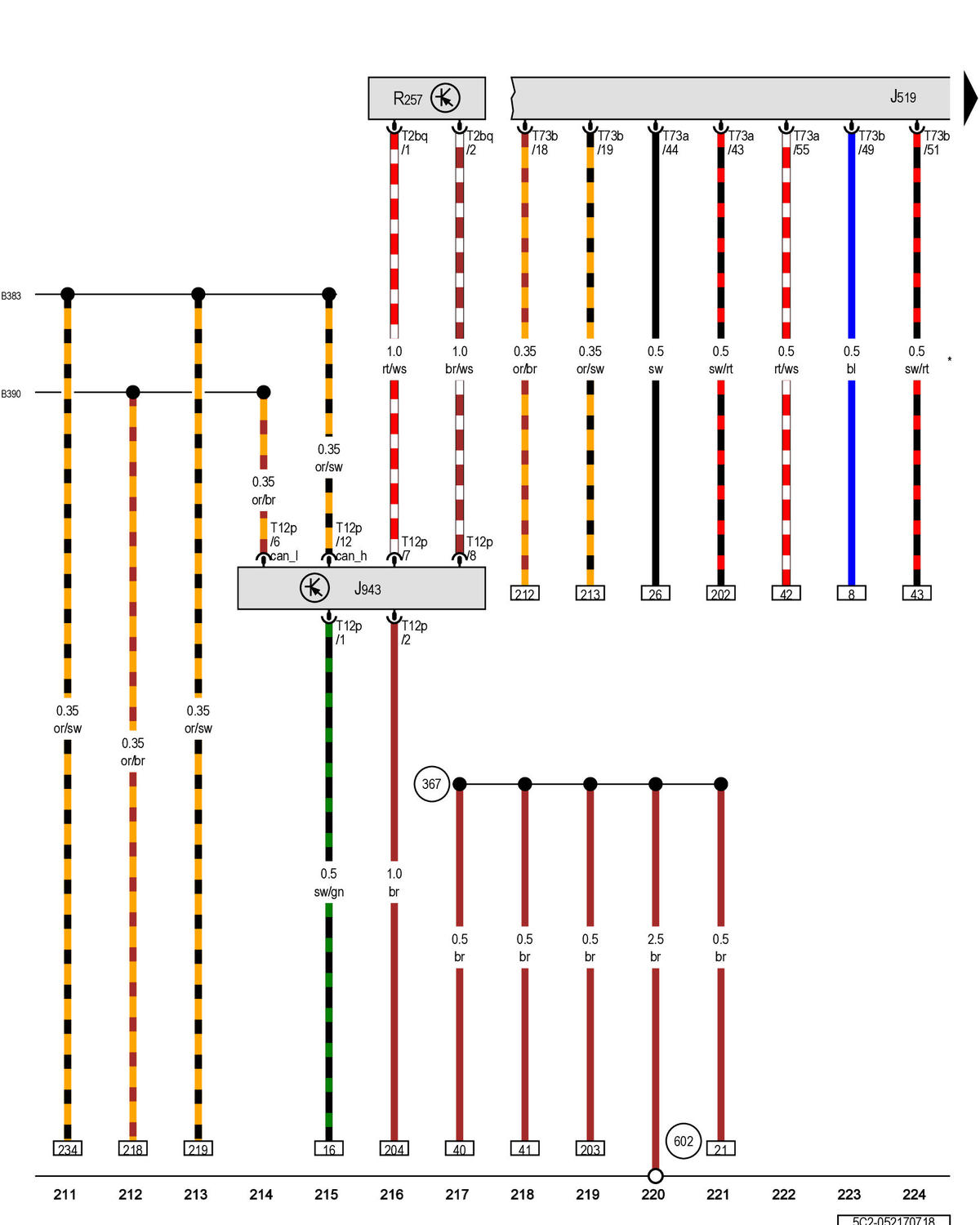

Vehicle Electrical System Control Module, Engine Sound Generator Control Module, Engine Sound Generator Actuator 1: Notes

GWW5C2-052170718Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
