Display Control Head, Removing And Installing, CLIMATRONIC: Removing

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Unclip the trim -1- using the :3409  .

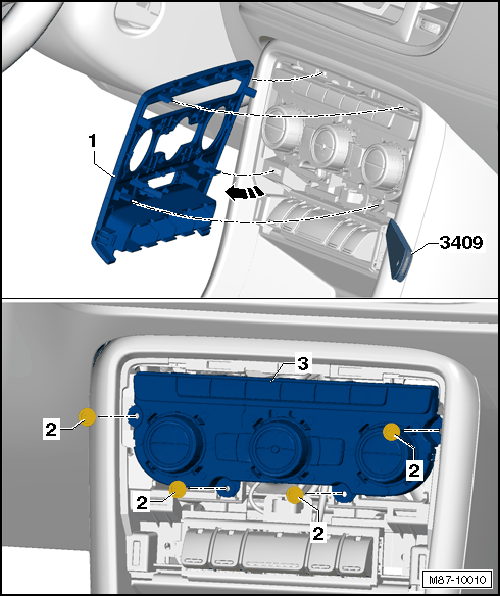

Fig 1: Identifying Climatronic Control Module And Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the trim -1- in the direction of -arrow-.

-- Remove the bolts -2-.

-- Remove the Front A/C Display Control Head -E87- and the Climatronic Control Module -J255- -3- from the center console, and disconnect the connectors on the rear side.
