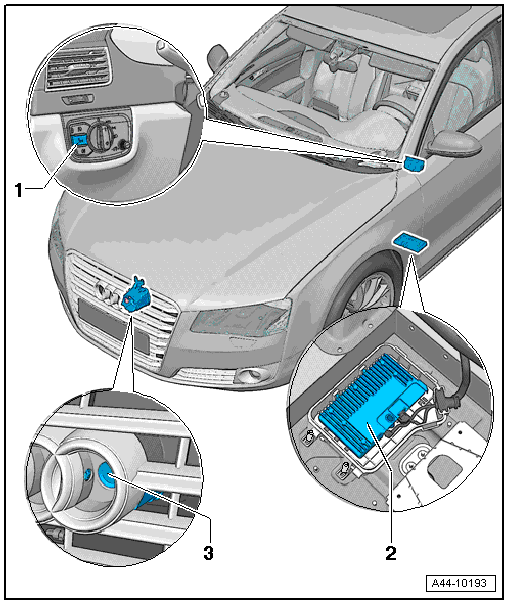

Component Location Overview - Infrared System
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
- Light Switch -E1- with Night Vision System Button -E680-
- Removing and installing, refer to[For engine(s) CDRA,CTUB,CEUA,CGTA,CPNA,CEJA] ControlsConnector Assignment on Trailer Hitch Socket
- Night Vision System Control Module -J853-
- Component location in front left footwell
- Removing and installing, refer to NIGHT VISION SYSTEM CONTROL MODULE, REMOVING AND INSTALLING .
- Night Vision System Camera -R212-
- Removing and installing, refer to NIGHT VISION SYSTEM CAMERA, REMOVING AND INSTALLING .
- Calibration, refer to Infrared System .
