Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING, RHD: Removing

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

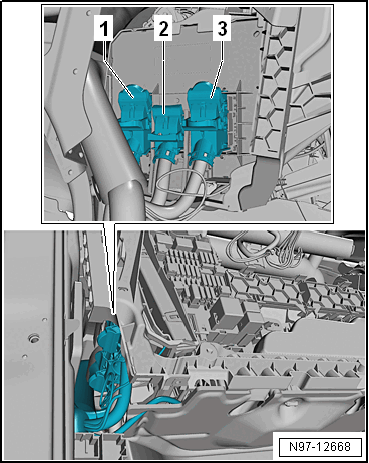

-- Disconnect the connectors -1, 2 and 3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- To disconnect the connector press the circlip -1-.

Fig 1: Pressing Catch -1-, Turn Retaining Bracket In -Direction Of Arrow For Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pivot the retaining bracket -arrow- and remove the connector.

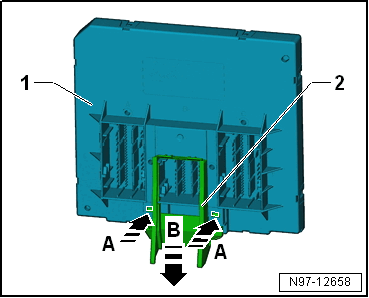

-- If equipped, remove the guide -2-. Release the catches on the guide in the direction of the -arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- remove the guide -2- in the direction of the -arrow B- from the Vehicle Electrical System Control Module -J519- -1-.

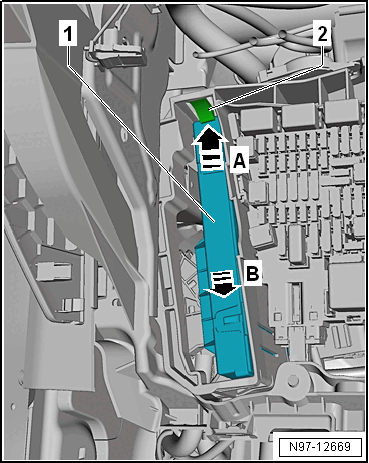

-- Release the upper spring -2- in the direction of the -arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Vehicle Electrical System Control Module -J519- -1- rearward in the direction of the -arrow B- from the bracket.
