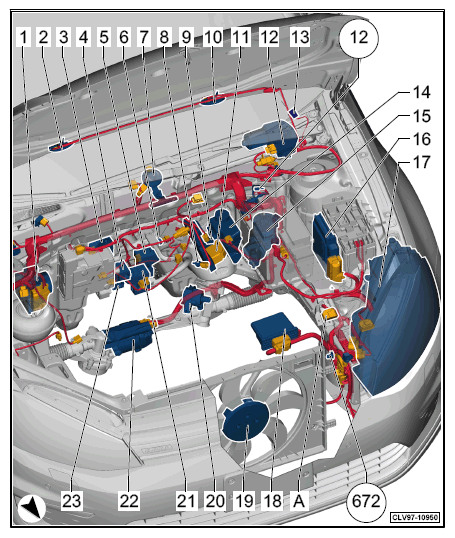

Engine Compartment, Left Part I

1 - ABS control module -J104-
2 - Right washer nozzle heater -Z21-
3 - Refrigerant expansion valve 3 -N638-
4 - Refrigerant expansion valve 2 -N637-
5 - Refrigerant cut-off valve 4 -N642-
6 - A/C pressure/temperature sensor 2 -G826-
7 - Alarm horn -H12-
8 - A/C compressor regulator valve -N280-
9 - Brake fluid level warning switch -F34-
10 - Left washer nozzle heater -Z20-
11 - Brake booster control module -J539-
12 - Wiper motor control module -J400-
12 - Windshield wiper motor -V-
13 - Windshield defogger -Z2-
14 - Brake pedal position sensor -G100-
14 - Brake pedal position sensor 2 -G836-
14 - Brake booster -NX6-
15 - Brake system pressure reservoir -VX70-
15 - Motor in recuperation brake pressure reservoir -V545-
16 - Engine control module -J623-
17 - Left LED headlamp power output module 1 -A31-
17 - Left front headlamp -MX1-
17 - Left headlamp beam adjustment motor -V48-
17 - Left headlamp power output module -J667-
17 - Left light control module -J1018-
18 - Thermal management control module -J1024-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
19 - Coolant fan control module -J293-
19 - Coolant fan -V7-
19 - Coolant fan -VX57-
20 - Coolant pump in front of high voltage heater (PTC) -V509-
21 - Refrigerant expansion valve 1 -N636-
22 - Steering angle sensor -G85-
22 - Steering torque sensor -G269-
22 - Power steering control module -J500-
22 - Electromechanical power steering motor -V187-
23 - Refrigerant cut-off valve 1 -N696-
A - 14-pin connector -T14p-
A - 14-pin connector -T14s-
12 - Ground connection in engine compartment, left
672 - Ground connection 2 on left front longitudinal member
