Removal And Installation

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the Front Display Interface Module(FDIM). Refer to Front Display Interface Module (FDIM) .

2.

Remove the 3Accessory Protocol Interface Module(APIM) to FDIM screws, disconnect the electrical connector and remove the APIM.
- To install, tighten the screws to 0.6 Nm (5 lb-In).

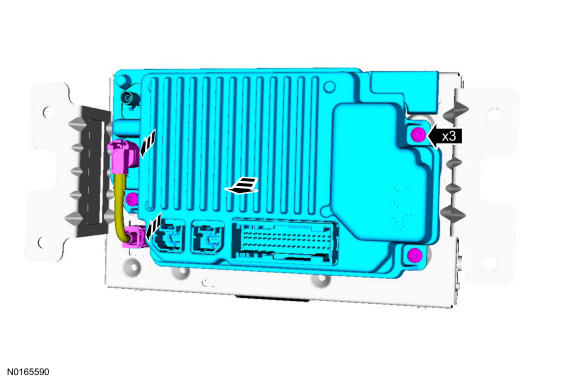

GFD136950

Courtesy of FORD MOTOR COMPANY

3.

To install, reverse the removal procedure.
- If a new APIM is being installed, program the APIM to the correct software level. Refer to Accessory Protocol Interface Module (APIM) Programming .
