Seat Frame Trim Panel/Control Module/Compressor Bracket, Removing And Installing: Removing

WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Unscrew the front seat and tip to the rear with the wires attached. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Unclip the seat functions control module and lay it aside with the wires connected. Refer to SEAT FUNCTIONS CONTROL MODULE, REMOVING AND INSTALLING .

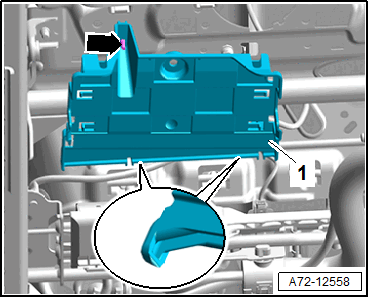

Standard/Sport/Super Sport Seat:

Courtesy of AUDI OF AMERICA, LLC

-- Press the pin -arrow- toward the seat cushion and out of the bracket.

-- Remove the pin that was pressed out from the seat pan.

-- Unclip the bracket support from the seat pan using a flat-head screwdriver.

-- Detach the bracket -1- at the rear of the seat pan and remove it.

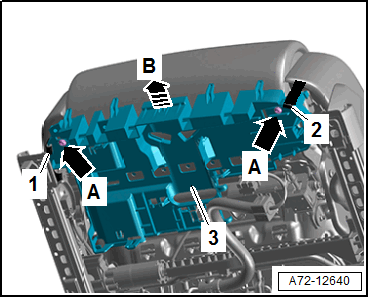

Comfort Seat:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the pneumatic system compressor. Refer to PNEUMATIC SYSTEM COMPRESSOR, REMOVING AND INSTALLING .

-- Remove the front seat frame trim panel. Refer to FRONT SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING, COMFORT SEAT .

-- Detach the cover hooks -1 and 2-.

-- Remove the screws -A arrows-.

-- Remove the seat frame trim panel/control module/compressor bracket -3- forward from the guides in direction of -arrow B-.
