Seat Functions Control Module, Removing And Installing: Installing
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- If the control module was replaced, follow the sequence when connecting the connectors.

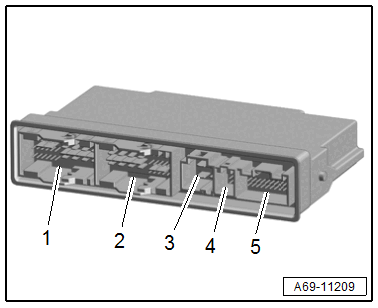

-- First connect the connector -5- (coding connector), then connect the other connectors -1 to 4-.
Further installation is performed in reverse order of removal, while noting the following:
-- Install the front seat. Refer to Installing .
