Front Seat Switch/Switch Module, Removing And Installing: Removing
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the seat frame trim panel on the side sill side:
- Standard/Sport/Super Sport seat. Refer to SIDE SILL SIDE SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING .
- Comfort seat. Refer to SIDE SILL SIDE SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING, COMFORT SEAT .

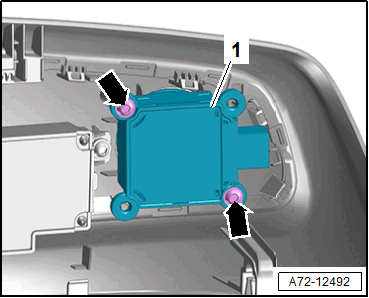

-- Remove the bolts -arrows- and the switch module -1-.
