Overview - Shift Mechanism

WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

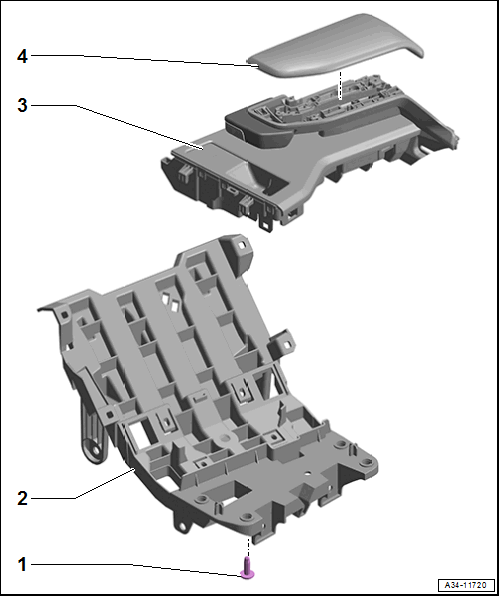

Fig 1: Exploded View Of Shift Mechanism
GWWA34-11720Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 8 Nm
  2. Bracket
  3. Shift Mechanism
  4. Shifter
