Overview - Windshield Projection (Head-Up Display)

WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

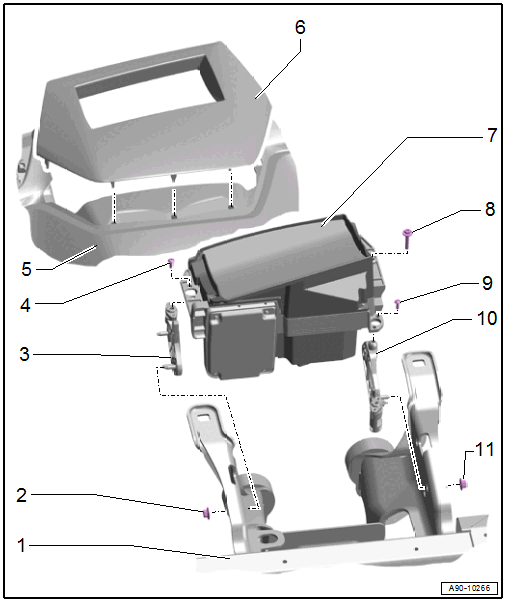

Fig 1: Exploded View Of Windshield Projection (Head-Up Display)

Courtesy of AUDI OF AMERICA, LLC

Instrument Panel Crossmember
Nut
- Must not be loosened
- Quantity: 3
Exterior Bracket
- For windshield projection control module
- Must not be removed
Bolt
- Tightening specification and sequence. Refer to Fig 2.
- Quantity: 2
Instrument Panel
Upper Cover
- Removing and installing. Refer to OVERVIEW - INSTRUMENT PANEL .
Windshield Projection Head Up Display Control Module -J898-
- Removing and installing. Refer to WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE, REMOVING AND INSTALLING .
Bolt
- Tightening specification and sequence. Refer to Fig 2.
Bolt
- Tightening specification and sequence. Refer to Fig 2.
- Quantity: 2
Interior Bracket
- Must not be removed
- For windshield projection control module
Nut
- Must not be loosened
- Quantity: 3

Windshield Projection Head Up Display Control Module - Tightening Specification and Sequence

Fig 2: Windshield Projection Head Up Display Control Module - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in the sequence shown.

Bolts	Tightening Specification
-1-	5.5 Nm
-2 and 3-	4 Nm
