Parking Aid Speaker -R169-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN CENTER SECTION OF VEHICLE .
-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

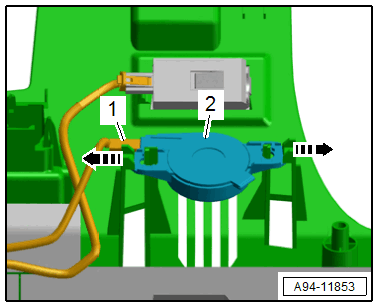

-- Release the retainers in direction of -arrows-.
-- Remove the parking aid speaker -2-.
-- Disconnect the connector -1-.
