Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front carpet. Refer to CARPET, REMOVING AND INSTALLING .

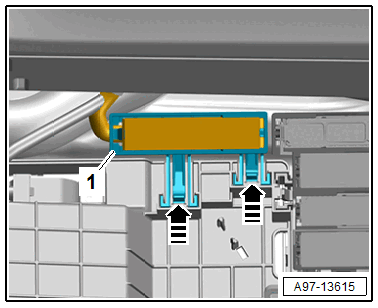

-- Release the catches in direction of -arrows- and remove the fuse panel -1-.

Courtesy of AUDI OF AMERICA, LLC

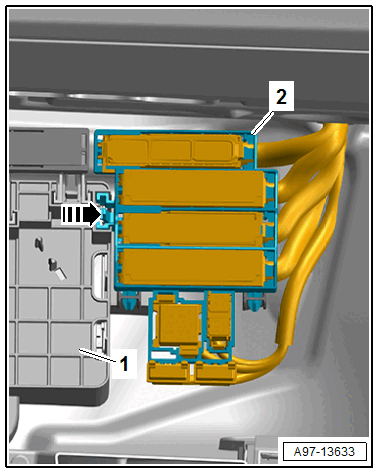

-- Release the retainer in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Tilt the fuse panel -2- slightly forward and remove upward out of the vehicle electrical system control module mount -1-.

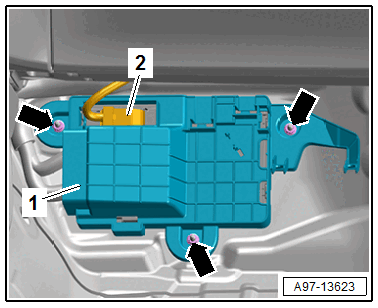

-- Disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows- using the :T40078 .

-- Remove the vehicle electrical system control module mount -1- and turn.

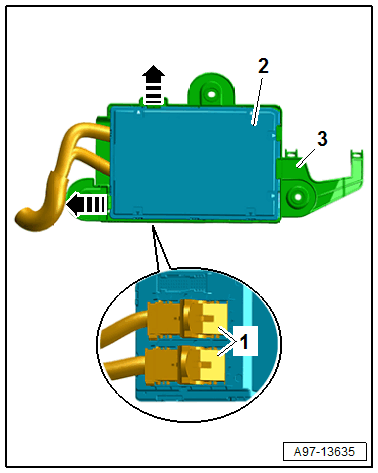

-- Release the retainers in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the vehicle electrical system control module -2- from the mount -3-.

-- Disconnect the connectors -1-.

-- Remove the vehicle electrical system control module.
