Refrigerant Receiver, Removing And Installing: Installing

WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal and note the following:

There is refrigerant oil in the removed heat exchanger and refrigerant receiver that must be redelivered to the refrigerant circuit, if one of the components is replaced. Refer to Refrigerant Circuit Components, Replacing or COMPONENTS, REPLACING .

-- Replace the O-rings and coat them with refrigerant oil before installing. Refer to REFRIGERANT CIRCUIT SEALS and the Parts Information for the correct version.

-- Check the alignment pin on the heat exchanger and the refrigerant line for damage and correct seating.

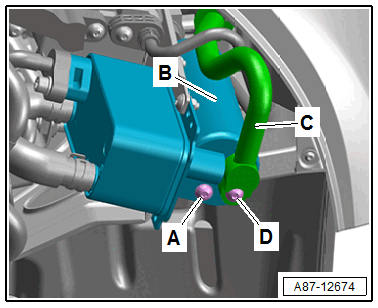

-- Install the refrigerant hammer -B-.

Courtesy of AUDI OF AMERICA, LLC

-- Insert the refrigerant line -C-.

-- Tighten the bolts -A and D-.

-- Check the routing of the refrigerant line -C- after attaching. It must be inserted into the provided brackets and must not come in contact with other components.

-- Reinstall the rest of the removed components in the reverse order and reattach the loosened components.

-- Evacuate and fill the refrigerant circuit. Refer to Refrigerant Circuit (Refrigerant R134a Servicing, Refrigerant Circuit, Working with A/C Service Station) or Working with A/C Service Station (1 Of 2) / Working with A/C Service Station (2 Of 2) .

-- Switch the ignition on.

-- Initiate the basic setting of the A/C system through the Thermal Management Control Module -J1024- and activate the power-controlled valves using one of the routines stored there. "Charge/flush the refrigerant circuit stop routine" using the Vehicle Diagnostic Tester.

-- Start the A/C system after charging the refrigerant circuit. Refer to A/C SYSTEM, STARTING AFTER CHARGING REFRIGERANT CIRCUIT .
