Condenser, Removing And Installing: Removing

• For all the following work, close the open lines and connections with clean plugs from the Engine Bung Set :VAS6122  .

• The radiator and condenser may have small indentations on the fins even when installed correctly. This is not damage. Do not replace the radiator or condenser because of those small indentations.
• Slight deformations on the side securing straps on the condenser (for example, due to an accident), can result in an unparallel flow from the condenser and radiator; this can be resolved by pulling the straps back as long as the function/condenser sealing is not impaired. The straps on the condenser do not need to be replaced if there are small deformations.
• A slight bending of the condenser (up to 4 mm) is permissible as long as there is sufficient distance (minimum 4 mm) between the condenser and the radiator and the function/sealing of the condenser (of the refrigerant circuit) is not impaired.

-- Remove the upper radiator shutter. Refer to the appropriate service information .

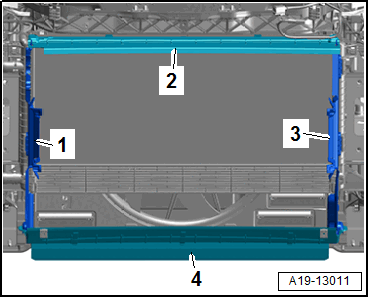

-- Unclip the air ducts -1 through 4-. (Shown with the impact member removed)

Courtesy of AUDI OF AMERICA, LLC

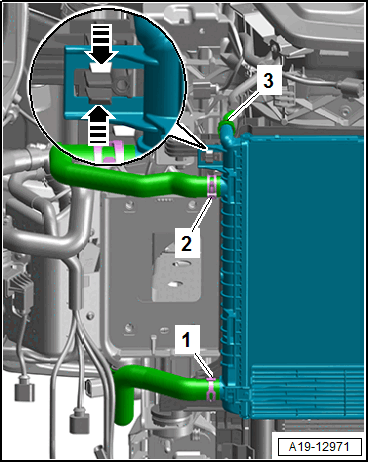

-- Release the left and right catches -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the lower radiator and pivot it slightly toward the front.

-- Disconnect the refrigerant lines from the condenser. Refer to REFRIGERANT LINES, DISCONNECTING AND CONNECTING AT CONDENSER .

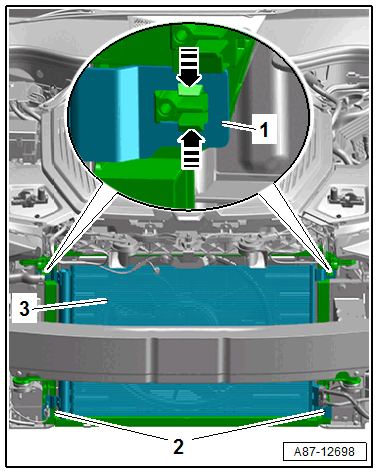

-- Release the catches on the condenser -3- -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Tilt the condenser -3- slightly forward.

-- Disengage the condenser -3- first left and then right upward from the mounts -2- on the bottom.

-- Remove the condenser downward.
