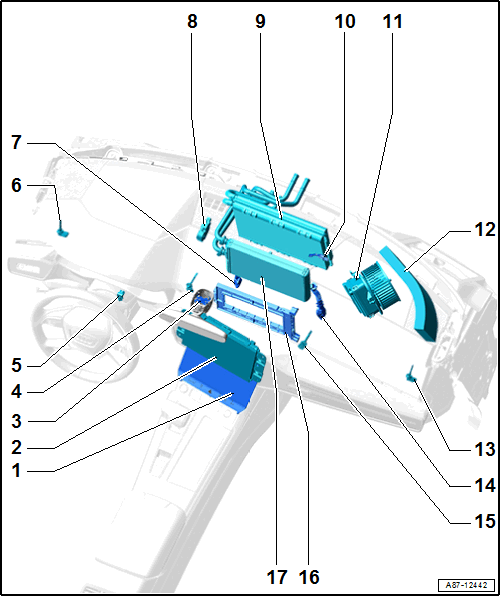

Component Location Overview - Components In Front Vehicle Interior
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Front Information Display Control Head 2 -J1060-
- Removing and Installing. Refer to Front Information Display Control Head 2 -J1060-, REMOVING AND INSTALLING .
- Front Information Display Control Head -J685-
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING
- Rain/Light Recognition Sensor -G397- with Humidity Sensor -G355-
- Removing and Installing. Refer to Humidity Sensor -G355-, REMOVING AND INSTALLING .
- Left Footwell Vent Temperature Sensor -G261-
- Removing and Installing. Refer to Left Footwell Vent Temperature Sensor -G261-, REMOVING AND INSTALLING .
- Instrument Panel Temperature Sensor -G56-
- Removing and Installing. Refer to Instrument Panel Temperature Sensor -G56-, REMOVING AND INSTALLING .
- Left Front Upper Body Vent Temperature Sensor -G385-
- Removing and Installing. Refer to Left Front Upper Body Vent Temperature Sensor -G385-, REMOVING AND INSTALLING .
- Left condensation water drain hose
- Removing and Installing. Refer to CONDENSATION WATER DRAIN, REMOVING AND INSTALLING .
- Checking. Refer to CONDENSATION WATER DRAIN, CHECKING .
- Adjustment Motor
- Example for all adjustment motors
- Overview - Adjustment Motors. Refer to COMPONENT LOCATION OVERVIEW - FRONT ACTUATORS
- Evaporator
- Removing and Installing. Refer to EVAPORATOR, REMOVING AND INSTALLING .
- Evaporator Vent Temperature Sensor -G263-
- Removing and Installing. Refer to Evaporator Vent Temperature Sensor -G263-, REMOVING AND INSTALLING .
- On RHD vehicles, the Evaporator Vent Temperature Sensor -G263- is installed from the left side into the evaporator housing of the heater and A/C unit (in the area behind the coolant pipes for the heat exchanger).
- Fresh Air Blower -V2- with Fresh Air Blower Control Module -J126-
- Removing and Installing. Refer to Fresh Air Blower -V2- WITH Fresh Air Blower Control Module -J126-, REMOVING AND INSTALLING .
- Checking. Refer to Vehicle Diagnostic Tester.
- Dust and Pollen Filter
- Removing and Installing. Refer to DUST AND POLLEN FILTER, REMOVING AND INSTALLING .
- Right Front Upper Body Vent Temperature Sensor -G386-
- Removing and Installing. Refer to Right Front Upper Body Vent Temperature Sensor -G386-, REMOVING AND INSTALLING .
- Right Condensation Water Drain Hose
- Removing and Installing. Refer to CONDENSATION WATER DRAIN, REMOVING AND INSTALLING .
- Checking. Refer to CONDENSATION WATER DRAIN, CHECKING .
- Right Footwell Vent Temperature Sensor -G262-
- Removing and Installing. Refer to Right Footwell Vent Temperature Sensor -G262-, REMOVING AND INSTALLING .
- Auxiliary Heater Heating Element -Z35-
- Removing and installing. Refer to Auxiliary Heater Heating Element -Z35-, REMOVING AND INSTALLING .
- Installed depending on vehicle equipment
- Heater Core
- Removing and Installing. Refer to HEATER CORE, REMOVING AND INSTALLING .
