A/C Compressor, Removing And Installing From Bracket
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Removing
- A/C compressor removed. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING .

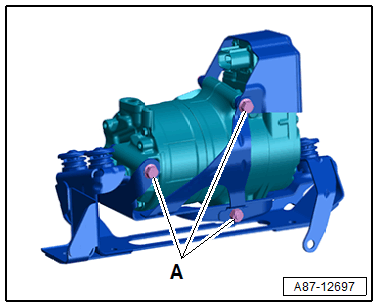

-- Loosen the bolts -A- and remove the A/C compressor.
Install in reverse order of removal.
Tightening Specifications
- Refer to OVERVIEW - A/C COMPRESSOR POWER UNIT
