Power Fold Seat Control Switch: Removal

Vehicles with long wheelbase

1. Remove the D-pillar trim panel. Refer to: D-Pillar Trim Panel - Long Wheelbase .

   Vehicles with short wheelbase

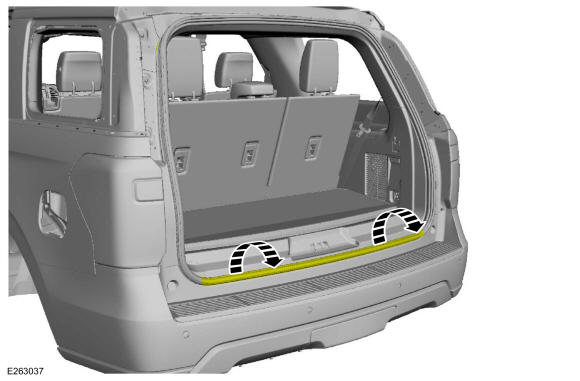

2. Position the liftgate opening weatherstrip aside.

   Courtesy of FORD MOTOR COMPANY

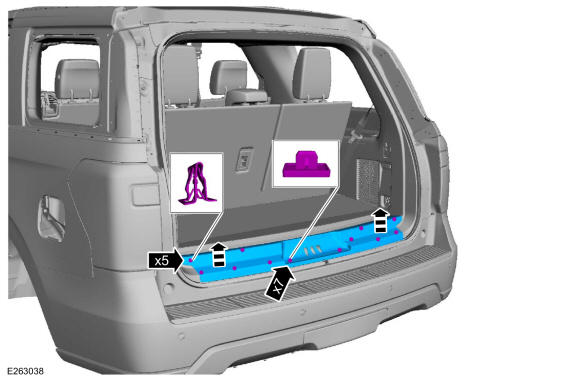

3. Release the clips and the liftgate scuff plate trim panel.

   Courtesy of FORD MOTOR COMPANY

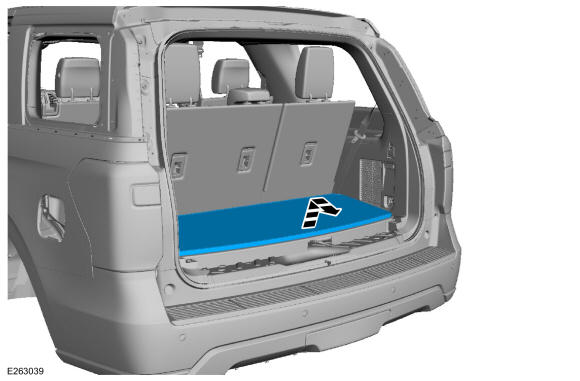

4. Remove the load floor cover.

   Courtesy of FORD MOTOR COMPANY

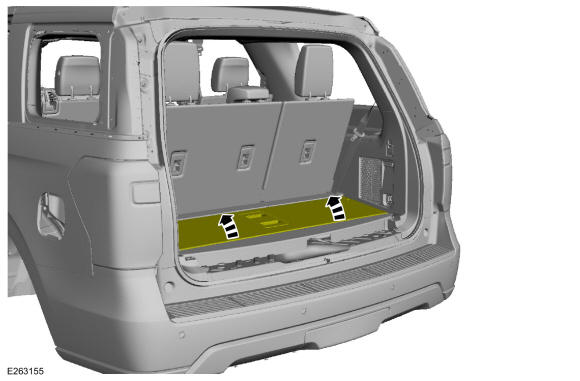

5. Position the load floor storage compartment cover up.

   Courtesy of FORD MOTOR COMPANY

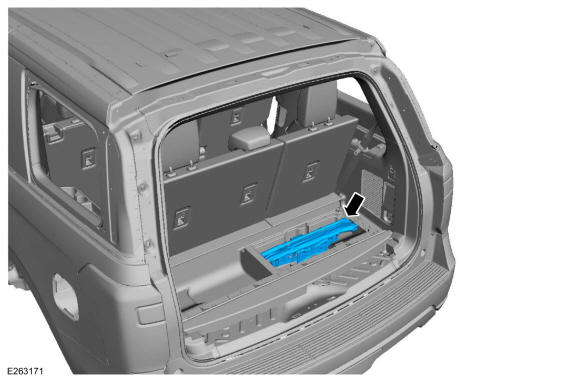

6. Remove the vehicle jack assembly.

   Courtesy of FORD MOTOR COMPANY

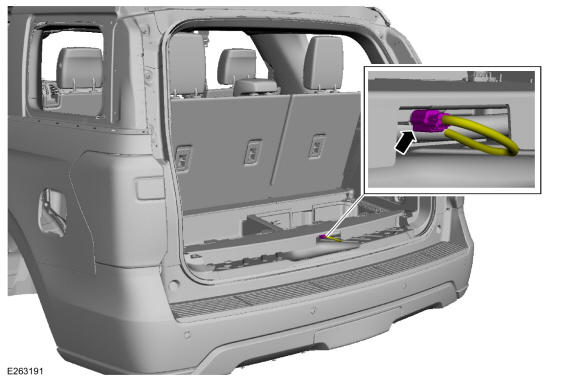

7. Disconnect the keyless entry rear antenna electrical connector.

   Courtesy of FORD MOTOR COMPANY

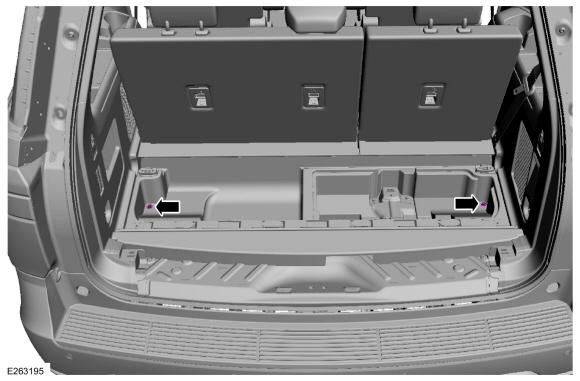

8. Remove the load floor storage compartment bolts.

   Courtesy of FORD MOTOR COMPANY

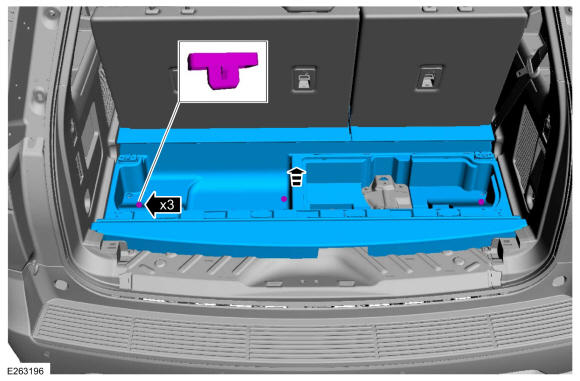

9. Release the clips and remove the load floor storage compartment.

   Courtesy of FORD MOTOR COMPANY

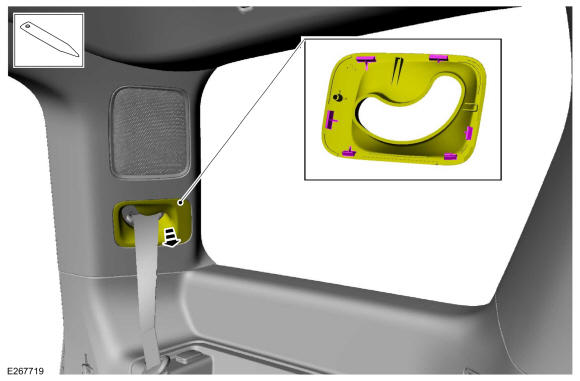

10. Position the third row outer seatbelt retractor guide cover aside.Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

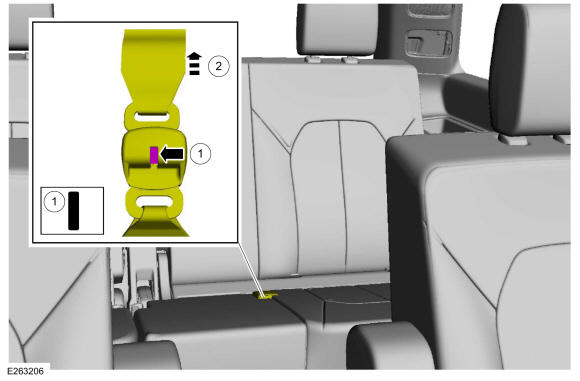

11. Disconnect the third row center seatbelt from the third row center seatbelt retractor mini-buckle.
    1. Press the release button.Use the General Equipment: Flat-Bladed Screwdriver
    2. Release the third row center seatbelt retractor.

    Courtesy of FORD MOTOR COMPANY

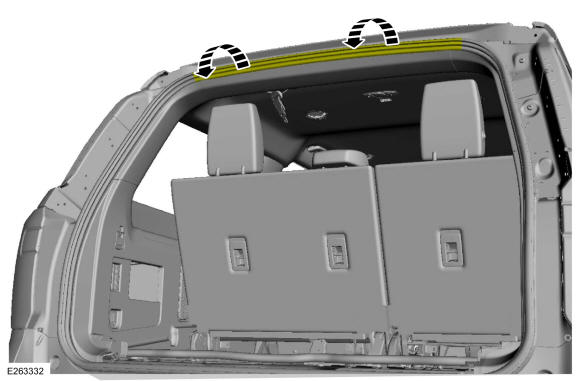

12. Position the liftgate opening weatherstrip aside.

    Courtesy of FORD MOTOR COMPANY

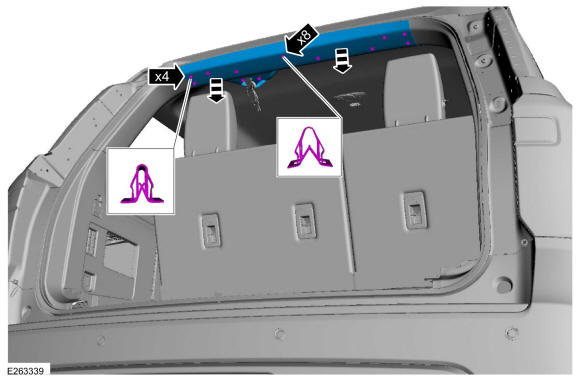

13. Release the clips and remove the liftgate opening upper trim panel.

    Courtesy of FORD MOTOR COMPANY

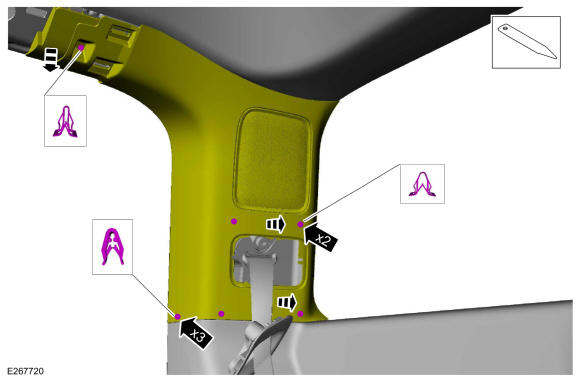

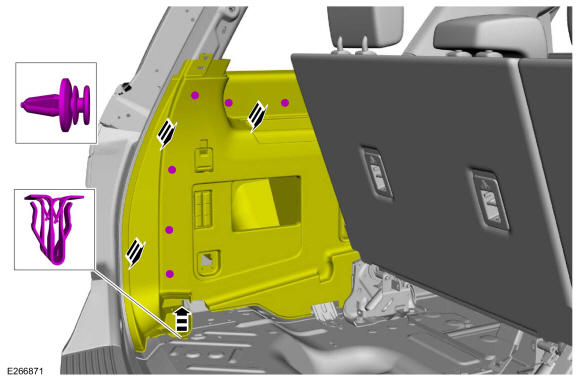

14. Release the D-pillar trim panel clips.

    Courtesy of FORD MOTOR COMPANY

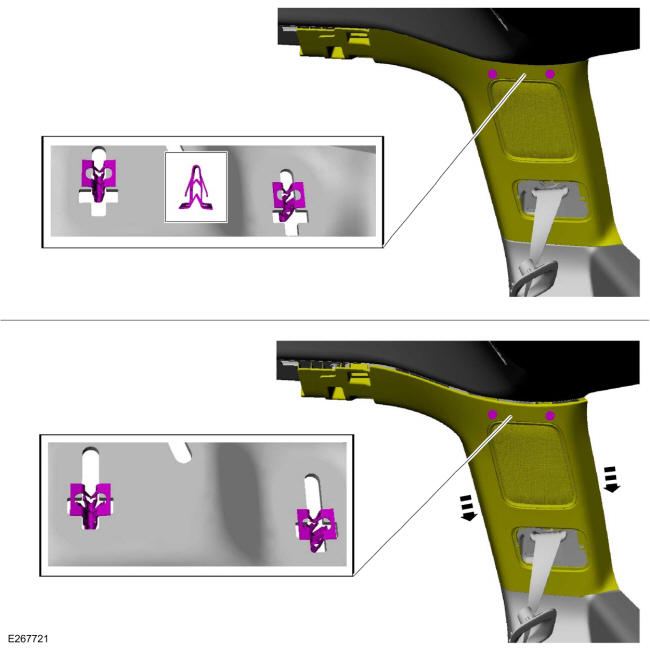

15. NOTE: The D-pillar trim panel must be positioned downward to allow the upper clips to release correctly. Failure to follow this direction may cause damage to the D-pillar trim panel.

    Slide the D-pillar trim panel down, aligning the clips to the slots in the sheet metal.

    Courtesy of FORD MOTOR COMPANY

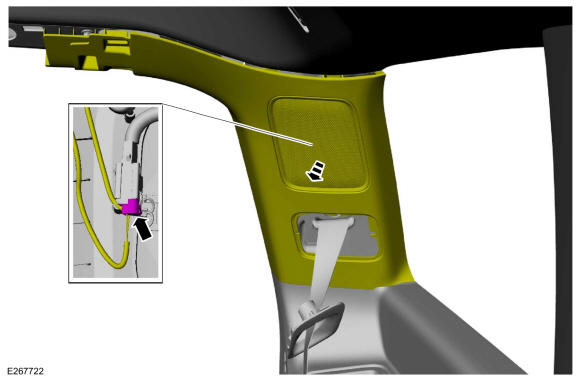

16. Position the D-pillar trim panel aside.
    • If equipped. Disconnect the D-pillar speaker electrical connector.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

    NOTE: Short wheelbase shown, long wheelbase similar.

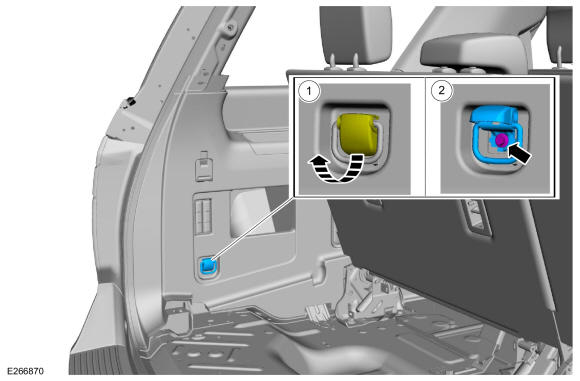

17. Remove the interior tie down hook.
    1. Position the interior tie down hook bolt cover up.
    2. Remove the bolt.

    Courtesy of FORD MOTOR COMPANY

18. Release the retainers and position the loadspace trim panel out enough to access the power fold seat control switch.

    Courtesy of FORD MOTOR COMPANY

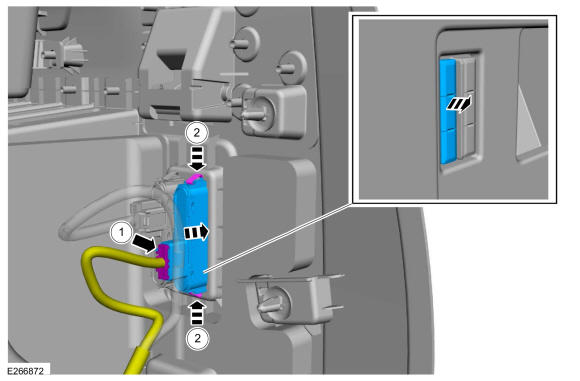

19. Remove the power fold seat control switch.
    1. Disconnect the electrical connector.
    2. Release the tabs.

Courtesy of FORD MOTOR COMPANY
