Setting Up the Calibration Device
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-VAS6350/1- installing:
- Check the dimension of the holes.
- Equip the -VAS6350/1- appropriately. Use spacer pieces. For rims with a large offset (RS 6) use the -VAS6350/5-.
- To do so, secure the three wheel bolt adapters in the hole circle to each -VAS6350/1-.
- Place the paddle on both -VAS6350/1- and secure them using a clamping screw.
- Place the -VAS6350/1- onto the wheel bolts on the rear wheels.
The -VAS6350/1- are positioned by the "O-rings" in the adapters and secured.
NOTE:
Attach the -VAS6350/1- onto the wheels so that any installed "anti-theft" wheel bolts are not connected to the - VAS6350/1-.
- Adjust the paddles with the aid of clamping screw so that they move freely just above the floor. Check the paddles for ease of movement.

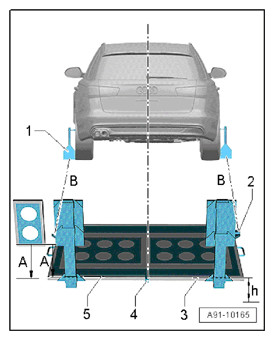

-VAS6350A- with -VAS6350A/6- orientation
- Position the -VAS6350A- with the -VAS6350A/6- -1- at a distance of between 400 mm and 600 mm -dimension B- in the rear of the vehicle in the center (is behind the rear bumper trim).
-VAS6350A- with -VAS6350A/6- orientation
- Move the calibration field on the -VAS6350A- into a horizontal position.
- To do so, twist plastic feet under the calibration field of the -VAS6350A- so that air bubble in level is located exactly in the center of the indicator -arrow-
WARNING:
Make sure tight does not reflect off the -VAS6350A/6-.
Reflections affect the camera and may make it impossible to perform the calibration.
Reflections affect the camera and may make it impossible to perform the calibration.
- Attach the -VAS6350/3- -4- to the -VAS6350A- to the center of the location provided.
- Switch on the -VAS6350/3- -4- on the calibration field of the -VAS6350A- and align the entire -VAS6350A- with -VAS6350A/6- so that the laser beam of the -VAS6350/3- hits the center of vehicle rear above the Audi rings.
- Make sure the Audi rings are centered on the rear. Correct the laser beam accordingly.
Distance measurement:
- Switch on the -VAS6350/2-.
