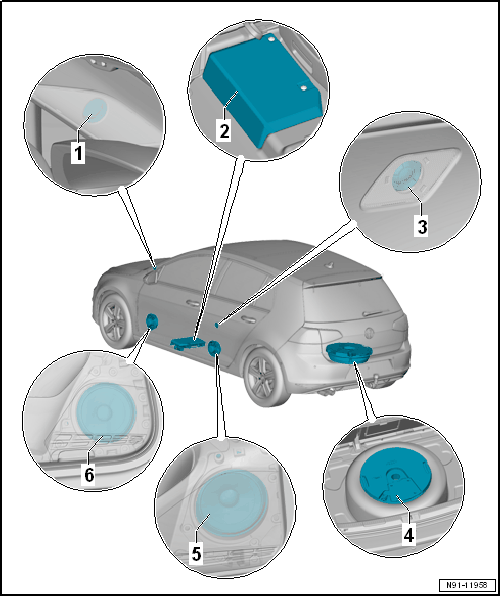

Component Location Overview - Sound System, Vehicles With DYNAUDIO Sound System
For vehicles with the Dynaudio sound system, high quality speaker systems manufactured by Dynaudio are installed at the standard component locations in the vehicle. The Dynaudio sound system can be identified by a Dynaudio name badge on the front treble speaker trim. In the spare tire well in the luggage compartment, a subwoofer speaker is installed to play back the bass tones. A MIB Light amplifier is used as the digital sound system control module.
- Front Treble Speaker
- Left Front Treble Speaker - R20-
- Right Front Treble Speaker - R22-
- In the A-pillar trim panels
- Removing and installing. Refer to LEFT/RIGHT FRONT TREBLE SPEAKER - R20 - / - R22 -, REMOVING AND INSTALLING .
- Digital Sound System Control Module -J525-
- Under the left front seat
- In the luggage compartment under cargo floor on the left side, eGolf
- Removing and installing. Refer to Digital Sound System Control Module -J525- .
- Rear Treble Speaker
- Left Rear Treble Speaker - R14-
- Right Rear Treble Speaker - R16-
- 2-door: in the side trim panels
- 4-door: in the door trim panels
- Removing and installing. Refer to LEFT/RIGHT REAR TREBLE SPEAKER - R14 - / - R16 -, REMOVING AND INSTALLING .
- Subwoofer -R211-
- In the spare wheel well
- Removing and installing. Refer to Subwoofer - R211-, REMOVING AND INSTALLING .
- Rear Bass Speaker
- Left Rear Bass Speaker -R15-
- Right Rear Bass Speaker -R17-
- 2-door: in the sidewalls
- 4-door: in the rear doors
- Removing and installing. Refer to LEFT/RIGHT REAR BASS SPEAKER - R15 - / - R17 -, REMOVING AND INSTALLING .
- Front Bass Speaker
- Left Front Bass Speaker -R21-
- Right Front Bass Speaker -R23-
- In the front doors
- Removing and installing. Refer to LEFT/RIGHT FRONT BASS SPEAKER - R21 - / - R23 -, REMOVING AND INSTALLING .
