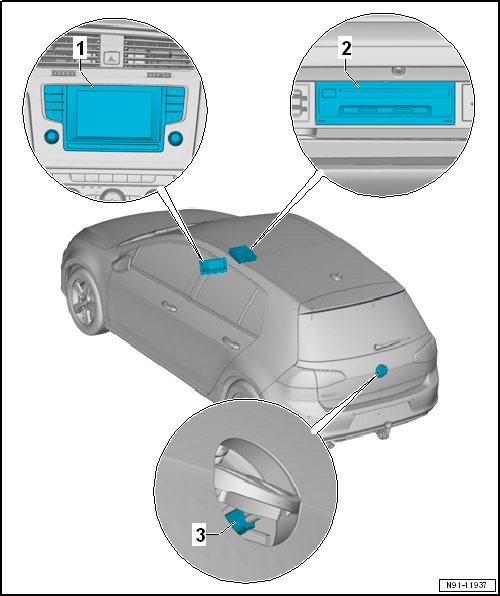

Component Location Overview - Rearview Camera System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Front Information Display Control Head -J685-
   • In center console, front
   • Removing and installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
2. Information Electronics Control Module 1 - J794-
   • In the glove compartment
   • Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
3. Rearview Camera -R189-
   • Pivoting emblem with Rearview Camera -R189- and pivoting motor in the rear lid
   • Removing and installing. Refer to Rearview Camera -R189-, REMOVING AND INSTALLING .
