Overview - Infotainment System, Discover Pro Equipment Level

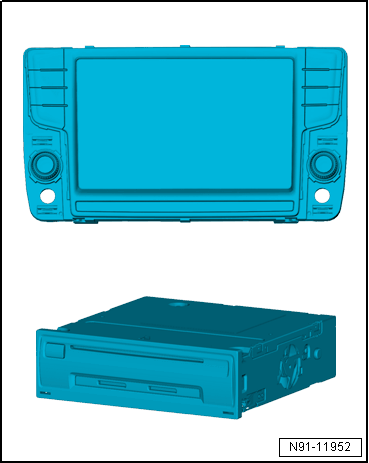

- Information Electronics Control Module 1 -J794-
- Front Information Display Control Head -J685-
- CD/DVD player
- SD card reader: 2 SD card slots
- Connection for External Multimedia Devices
Characteristics
- 8 inch multicolor display with touch screen (towing recognition)
- 4 x 20 W + 2 x 35 W output
- RDS FM/AM radio
- integrated Dual DAB tuner for digital radio reception
- SDARS for USA and Canada vehicles
- Integrated diversity function
- 3D navigation system with GPS satellite receiver
- CD player
- DVD drive
- SD card reader with 2 SD card slots
- AUX IN via a jack plug
- USB Connection
- iPod connection
- AAC
- AV output
- MP3-Play back function
- WMA
- JPEG viewer
- WLAN internal
- UMTS
- Support for multifunction steering wheel
- Vehicle menu support
- OBD including speaker diagnosis
- Bluetooth Hands-Free Calling
- Voice recognition system
- Speed compensated volume (SCV)
- Speed dependent dynamic range compression (GADK)
- CVBS (rearview camera)
Available as Option (Car Net):
- Google navigation
- Google Street View
- POI online
- Google search
Familiarity with the function and operation of the Infotainment system is needed if there are customer concerns.
Additional information may be found in the Owner's Manual.
The connection to other vehicle systems takes place via the Infotainment CAN bus and the Data Bus On Board Diagnostic Interface -J533-.
Fault finding is performed via Guided Fault Finding on the Vehicle Diagnostic Tester.

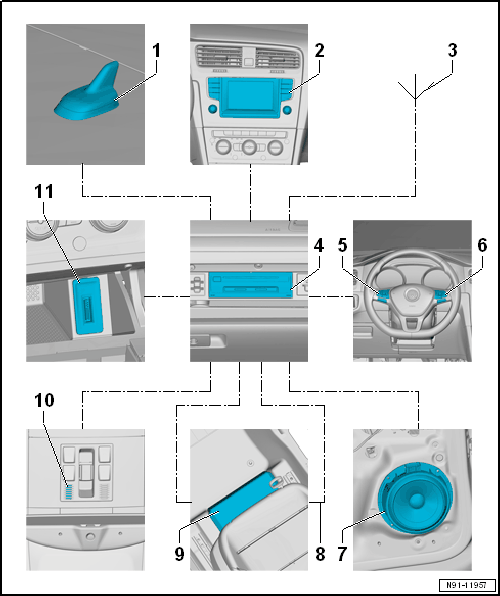

- Roof Antenna -RX5-
- Front Information Display Control Head -J685-
- Rear Window Antenna
- Information Electronics Control Module 1 - J794-
- Left Multifunction Buttons On Steering Wheel -E440-
- Right Multifunction Buttons On Steering Wheel -E441-
- Sound System
- MOST Bus
- Digital Sound System Control Module -J525-
- Telephone Microphone -R38-
- In the Front Interior Lamp -W1-
- Connection for External Multimedia Devices
Notes on MOST Bus
The optical Data bus "MOST bus" is used in addition to the CAN bus.
A fiber-optic cable is used as a "connecting cable". Fiber optic cables are routed inside corrugated tubes for protection.
Replace complete fiber optic cable if possible.
The front surface of the connectors must not be dirty.
If disconnecting the connectors: Attach Fiber-Optic Repair Set - Connector Protective Caps: VAS6223/9 .
When installing fiber optic cables, make sure not to go below the minimum bending radius of 25 mm. Do not crush or kink fiber optic cables.
