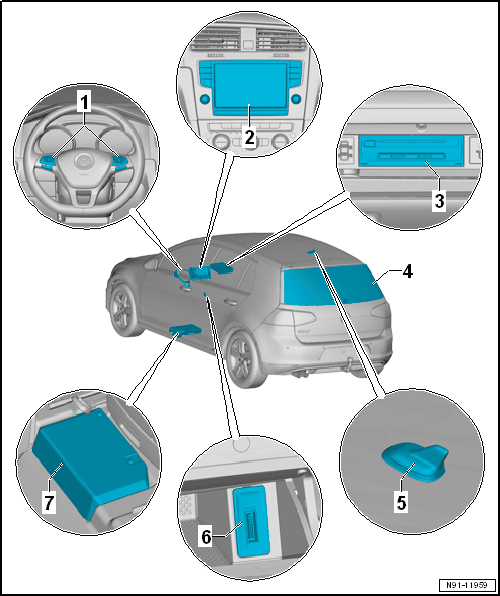

Component Location Overview - Infotainment System
- Multifunction Buttons on the Right Side of the Steering Wheel
- Left Multifunction Buttons On Steering Wheel -E440-
- Right Multifunction Buttons On Steering Wheel -E441-
- Removing and installing. Refer to RIGHT/LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441 - / -E440 -, REMOVING AND INSTALLING .
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Composition Touch and Composition Color Infotainment system equipment levels: in connection with the Information Electronics Control Module 1 - J794-
- Removing and installing. Refer to Radio -R-, REMOVING AND INSTALLING, COMPOSITION TOUCH AND COMPOSITION COLOR EQUIPMENT LEVELS .
- Composition Media and Discover Media Infotainment system equipment levels or Discover Pro equipment level: individual display
- Removing and installing. Refer to Radio -R-, REMOVING AND INSTALLING, COMPOSITION TOUCH AND COMPOSITION COLOR EQUIPMENT LEVELS .
- Information Electronics Control Module 1 -J794-
- Composition Touch and Composition Color Infotainment system equipment levels: in connection with the Front Information Display Control Head -J685-
- Removing and installing. Refer to Radio -R-, REMOVING AND INSTALLING, COMPOSITION TOUCH AND COMPOSITION COLOR EQUIPMENT LEVELS .
- Composition Media and Discover Media Infotainment system equipment levels or Discover Pro equipment level: in the glove compartment
- Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Connector assignment. Refer to => Wiring Diagram.
- Rear Window Antenna
- Roof Antenna -RX5-
- Connection for External Multimedia Devices
- In the front center console storage compartment
- Removing and installing. Refer to CONNECTION FOR EXTERNAL MULTIMEDIA DEVICES .
- Digital Sound System Control Module - J525-
- Under the left front seat
