USB Distributor -R293-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment.

-- Then remove the ignition key, if equipped.

-- Remove the center console insert. Refer to Center Console Insert, Removing and Installing .

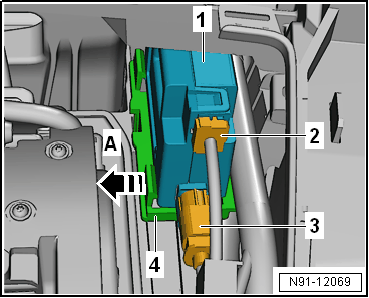

-- Press the catch on the bracket for the USB Distributor -R293- -4- in the direction of the arrow -A-.

-- Lift the USB Distributor -R293- -1- and remove it toward the rear.

-- Release and disconnect the connectors -2 and 3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
