Safety Precautions
To reduce the risk of personal injury and/or damage to the fuel injection and ignition system, always observe the following:
- The ignition must be switched off before connecting or disconnecting injection and ignition system wiring or tester cables.
- Do not touch or remove ignition wires when engine is running or turning at starter speed.
If special testing equipment is required during road test, note the following:
- Test and measuring instruments must be secured to rear seat and operated by a second person from this location.
If the vehicle is involved in a collision while testing and measuring equipment is operated from the front passenger seat, the person sitting in that seat could be seriously injured when the airbag deploys.
- If engine is to be cranked at starting RPM without starting:

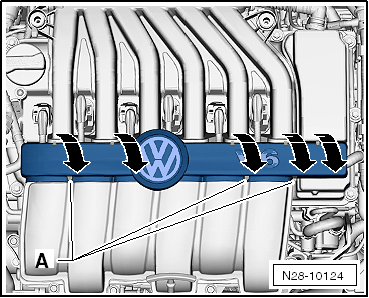

-- Unclip the cover strip off the ignition wiring harness in direction of -arrows- and move it forward from the tabs -A-.
-- Disconnect the connectors from ignition coils 1 to 6 using the :T10118 .
-- To do this, position the : T10118 on the release button -arrow- and carefully pull the connector down.
-- Pull the fuse for the fuel pump out of the fuse holder. Refer to the appropriate Wiring Diagram.
