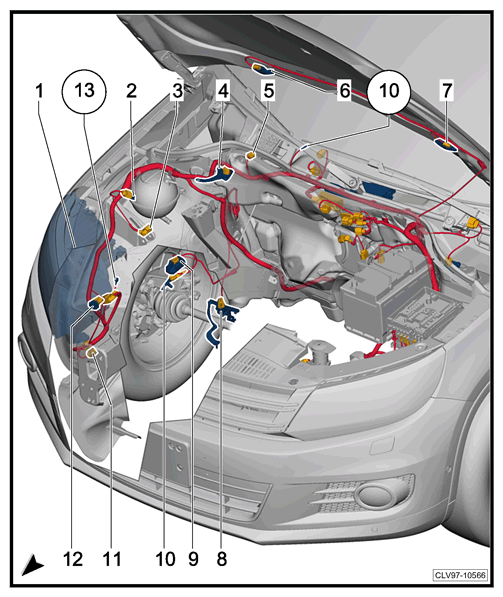

Engine Compartment, Right
- 1 - Right front headlamp -MX2-
- 2 - Engine coolant level sensor -G32-
- 3 - Vehicle special functions, optional
- 4 - Right front body acceleration sensor -G342-
- 5 - Air quality sensor -G238-
- 6 - Left washer nozzle heater -Z20-
- 7 - Right washer nozzle heater -Z21-
- 8 - Right front level control sensor -G289-
- 9 - Right front damping adjustment valve -N337-
- 10 - Right front ABS wheel speed sensor -G45-
- 11 - High pressure sensor -G65-
- 12 - Passenger side front airbag crash sensor -G284-
- 10 - Ground connection in plenum chamber
- 13 - Ground connection in engine compartment, right
