Through MY 2011:

The yellow Tire Pressure Monitoring Display Indicator Lamp -K220- is inside the instrument cluster -arrow-.

Fig 1: Identifying Tire Pressure Monitoring Display Indicator Lamp In Instrument Cluster
GWWN01-10647Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Perform "INITIAL" basic setting

-- Turn on the ignition.

-- Press the ESP  and SET  buttons in the center console together for longer than 2 seconds.

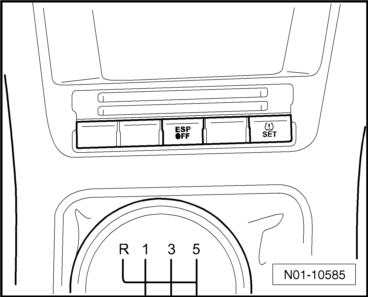

Fig 2: Identifying Center Console Buttons
GWWN01-10585Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Press the ASR  button if the vehicle does not have ESP.

Beginning of basic setting is confirm by a notifying tone.

On next new ignition start, warning does not appear.

Perform the basic setting

-- Turn on the ignition.

-- Press the SET  button in the center console for longer than 2 seconds.

The Tire Pressure Monitoring Display Indicator Lamp -K220- inside the instrument cluster -arrow- turn on as long as the button is pressed.

Fig 3: Identifying Tire Pressure Monitoring Display Indicator Lamp In Instrument Cluster
GWWN01-10647Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Beginning of basic setting is confirm by a notifying tone.

On next new ignition start, warning does not appear.
