Radios And Radio Navigation Systems: Installation
-- Connect the connectors to the radio.
-- Slide radio straight into instrument panel.
While sliding in the radio, under no circumstances press on the display or control buttons since the radio may be damaged by doing this.

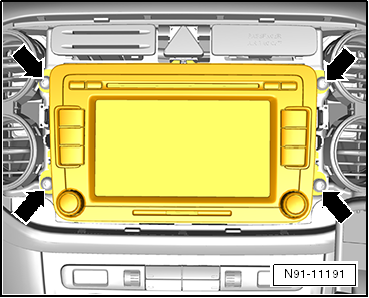

-- Attach the radio with the 4 bolts -arrows-.
-- Reinstall center instrument panel trim.
The rest of the installation is performed in the reverse order.
-- Deactivate the anti-theft coding if necessary:
Radio system RCD 310, refer to ANTI-THEFT CODING, DEACTIVATING, RCD 310 .
Radio system RCD 510 refer to ANTI-THEFT CODING, DEACTIVATING, RCD 510 .
Radio Navigation System RNS 315 refer to ANTI-THEFT CODING, DEACTIVATING, RNS 315 .
Radio Navigation System RNS 510 refer to ANTI-THEFT CODING, DEACTIVATING, RNS 510 .
-- Check radio/radio navigation system coding and code it if necessary.
For coding and adapting the radio components, refer to RADIO COMPONENTS, ADAPTING .
For coding and adapting the radio/navigation components, refer to NAVIGATION SYSTEM COMPONENTS, ADAPTING .
Troubleshooting
The radio is equipped with OBD.
To fault find, use "Guided Fault Finding" in the Vehicle Diagnostic Tester.
