Cellular Phone BASEPLATE: Removal

NOTE:

To avoid damaging instrument panel, create a template -1- as shown in the figure.

Use an overhead slide or similar material.

-- Remove the glove compartment. Refer to Removal and Installation .

-- Apply the film -1-.

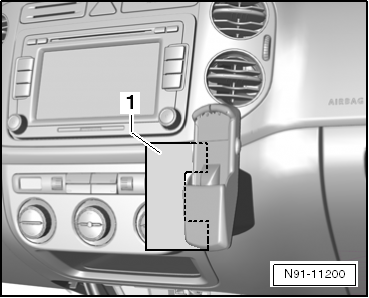

Fig 1: Identifying Film -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the baseplate clockwise -arrow- and loosen it.

Fig 2: Turning Baseplate Clockwise -Arrow-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove both TORX® bolts -arrows-.

Fig 3: Identifying TORX(R) Bolts -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector.
