Cellular Phone BASEPLATE: Installation

Install in reverse order of removal.

Make sure that wiring harness is connected correctly.

-- Connect the connector and install the wiring harness back into the instrument panel.

-- Install the mount for the cellular telephone mount -arrows-.

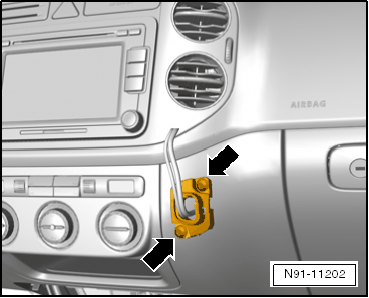

Fig 1: Identifying TORX(R) Bolts -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clip the telephone baseplate onto the mount.
