Component Overview

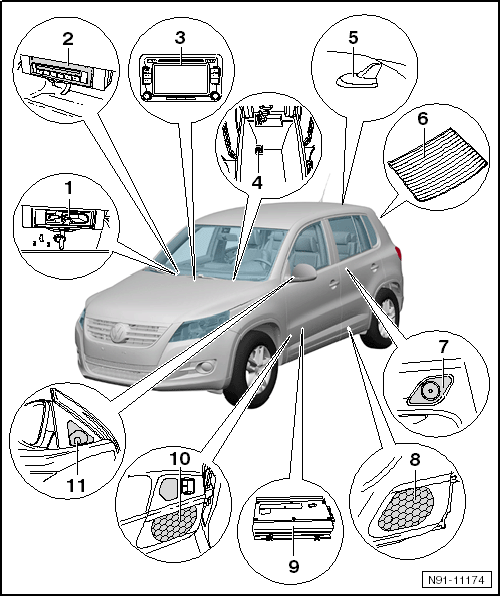

Fig 1: Component Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

External Multimedia Device Interface -R215-
- Installed in center console.
- Additional information can be found in external multimedia device interface, refer to EXTERNAL MULTIMEDIA DEVICE INTERFACE -R215- .
- Optional CD changer or external multimedia device interface. It is not possible to have both systems together because both systems have the same installation location.
CD Changer -R41-
- 6 disc CD changer.
- Installed in center console.
- For more information regarding the CD changer refer to CD CHANGER .
- Optional CD changer or external multimedia device interface. It is not possible to have both systems together because both systems have the same installation location.
Radio
- Removing and installing, refer to RADIOS AND RADIO NAVIGATION SYSTEMS .
- Connector overview, refer to CONNECTOR OVERVIEW .
- Transport protection device of CD changer in RCD 510, activating/deactivating, refer to CD CHANGER TRANSPORT PROTECTION, ACTIVATING/DEACTIVATING, RCD 510 .
- Anti-theft coding, refer to ANTI-THEFT CODING, DEACTIVATING, RCD 510 .
External Audio Source Connection -R199-
- Located inside the storage compartment under the center armrest.
- For more information regarding the external audio source connection, refer to EXTERNAL AUDIO SOURCE CONNECTION -R199- .
Telephone Antenna, Navigation and Auxiliary Heater Remote Control -R66-
- Located on the roof at the back of the vehicle.
- For more information regarding the different antenna systems, refer to ANTENNA SYSTEMS .
Window Antenna
- Installed in the rear window, for radio reception with antenna diversity.
- Antenna for digital radio reception, DAB, also optional.
- For more information regarding the different antenna systems, refer to ANTENNA SYSTEMS .
Right Rear Treble Speaker -R16- and Left Rear Treble Speaker -R14-
- Installed in door trim of left and right rear doors.
Right Rear Bass Speaker -R17- and Left Rear Bass Speaker -R15-
- Installed in door trim of left and right rear doors.
Digital Sound System Control Module -R12-
- Installed under the left front seat.
- For more information regarding the amplifier, refer to SOUND SYSTEM AMPLIFIER .
Right Front Midrange Speaker -R104- and Left Front Midrange Speaker -R103-, Right Front Bass Speaker -R23- and Left Front Bass Speaker -R21-
- Installed in door trim of left and right front doors.
- Midrange speakers are only installed in conjunction with sound system.
- The midrange speaker and the bass speaker are a single unit.
- Only the bass speaker is installed here when there is no sound system. Midrange frequencies play through the bass and treble speakers.
Right Front Treble Speaker -R22- and Left Front Treble Speaker -R20-
- Installed in triangle window of left and right front doors.
