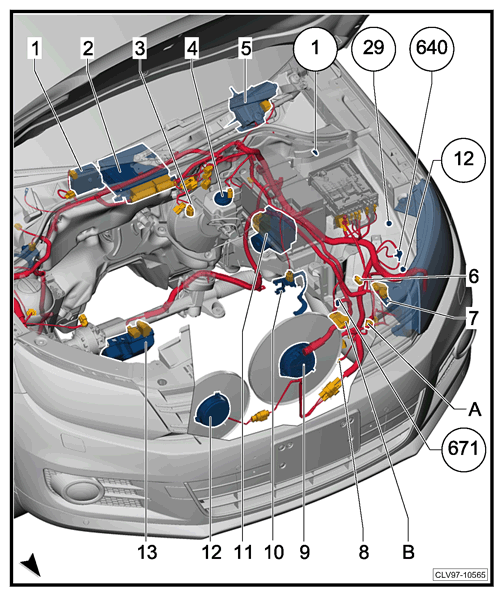

Engine Compartment, Left Part I
- 1 - Alarm horn -H12-
- 2 - Engine control module -J623-
- 3 - Brake booster pressure sensor -G294-
- 3 - Vacuum sensor -G608-
- 4 - Brake fluid level warning switch -F34-
- 5 - Wiper motor control module -J400-
- 5 - Windshield wiper motor -V-
- 6 - Engine hood contact switch -F266-
- 7 - Left front headlamp -MX1-
- 8 - Engine coolant temperature sensor on radiator outlet -G83-
- 9 - Coolant fan control module -J293-
- 9 - Coolant fan -V7-
- 10 - Left front level control system sensor -G78-
- 11 - ABS control module -J104-
- 12 - Coolant fan 2 -V177-
- 13 - Power steering control module -J500-
- 13 - Electromechanical power steering motor -V187-
- A - 14-pin connector -T14c-
- B - 14-pin connector -T14a-
- 1 - Ground strap, battery to body
- 12 - Ground connection in engine compartment, left
- 29 - Ground connection
- 640 - Ground connection 2 in engine compartment, left
- 671 - Ground connection 1 on left front longitudinal member
