Removable Trailer Hitch, Checking And Cleaning If Necessary: Checking

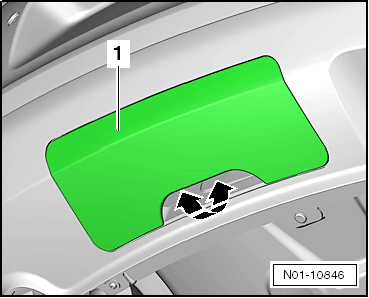

-- Remove the cover -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

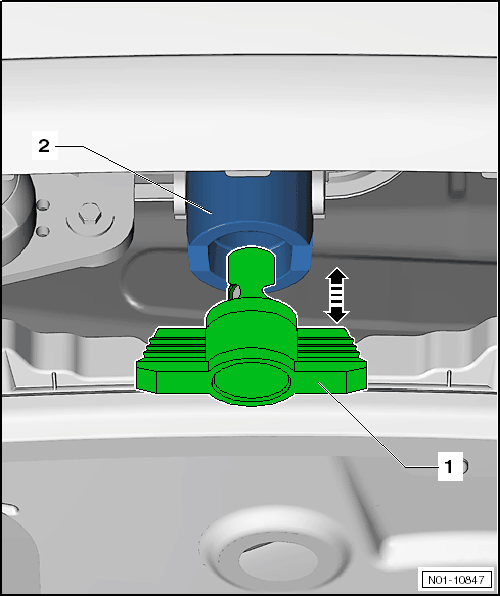

-- Remove the cap -1- from the ball head mount -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the ball head into the mount.

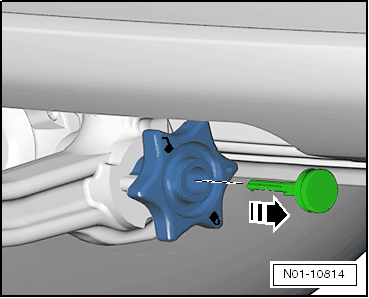

After the ball head is installed, the green marking on the hand wheel must match up with the white mark on the ball head. The hand wheel must make complete contact. The trailer hitch lock must lock when the key is removed. If this does not happen, perform the following repair.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
