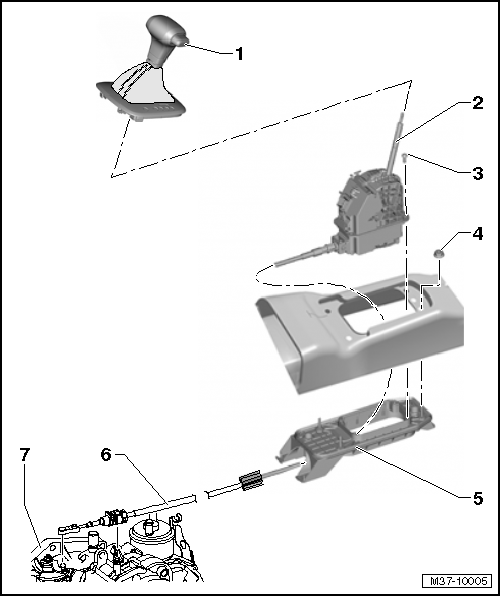

Overview - Selector Mechanism
WARNING:
Move the selector lever into "P" and set the parking brake before working with the engine running.
- Shift Cover with Handle
- Do not remove the handle unnecessarily. Unclip only the cover for the emergency release. Refer to EMERGENCY RELEASE FROM P .
- Removing and Installing. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
- Selector Mechanism with Selector Lever Cable
- With integrated Selector Lever Sensor System Control Module -J587- with Selector Lever -E313-, Tiptronic Switch -F189-, Selector Lever Park Position Lock Switch -F319- and Shift Lock Solenoid -N110-
- Selector lever cable can only be replaced together with the selector mechanism. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
- Do not grease the selector lever cable.
- Removing and Installing. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
- Checking and Adjusting. Refer to SELECTOR LEVER CABLE, CHECKING AND ADJUSTING .
- Bolt
- 8 Nm
- For attaching the selector mechanism to the selector housing
- Quantity: 4
- Nut with Collar
- 8 Nm
- Quantity: 4
- Selector Housing
- Selector Lever Cable
- Must not be removed from the selector mechanism and is replaced together as a single component.
- Transmission
