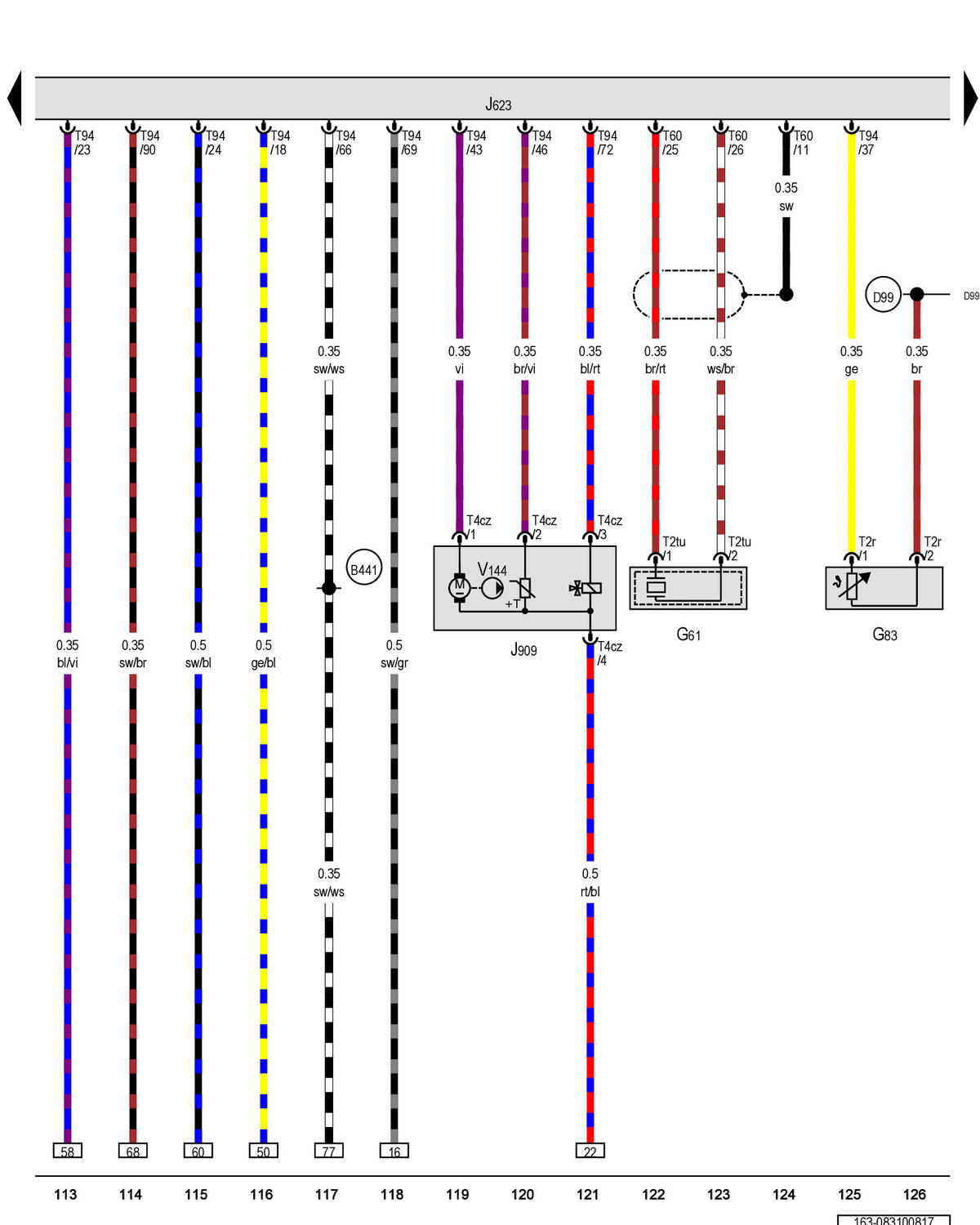

Knock Sensor 1, Engine Coolant Temperature Sensor On Radiator Outlet, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module, Leak Detection Pump

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G61

Knock Sensor 1

G83

Engine Coolant Temperature Sensor on Radiator Outlet

J623

Engine/Motor Control Module, In the Engine/Motor Compartment, Left

J909

Fuel Tank Leak Detection Control Module

T2r

2-Pin Connector

T2tu

2-Pin Connector

T4cz

4-Pin Connector

T60

60-Pin Connector

T94

94-Pin Connector

V144

Leak Detection Pump

Cruise Control Connection (in Main Wiring Harness)

Engine Coolant Temperature Sensor Connection (in Engine/Motor Compartment Wiring Harness)
