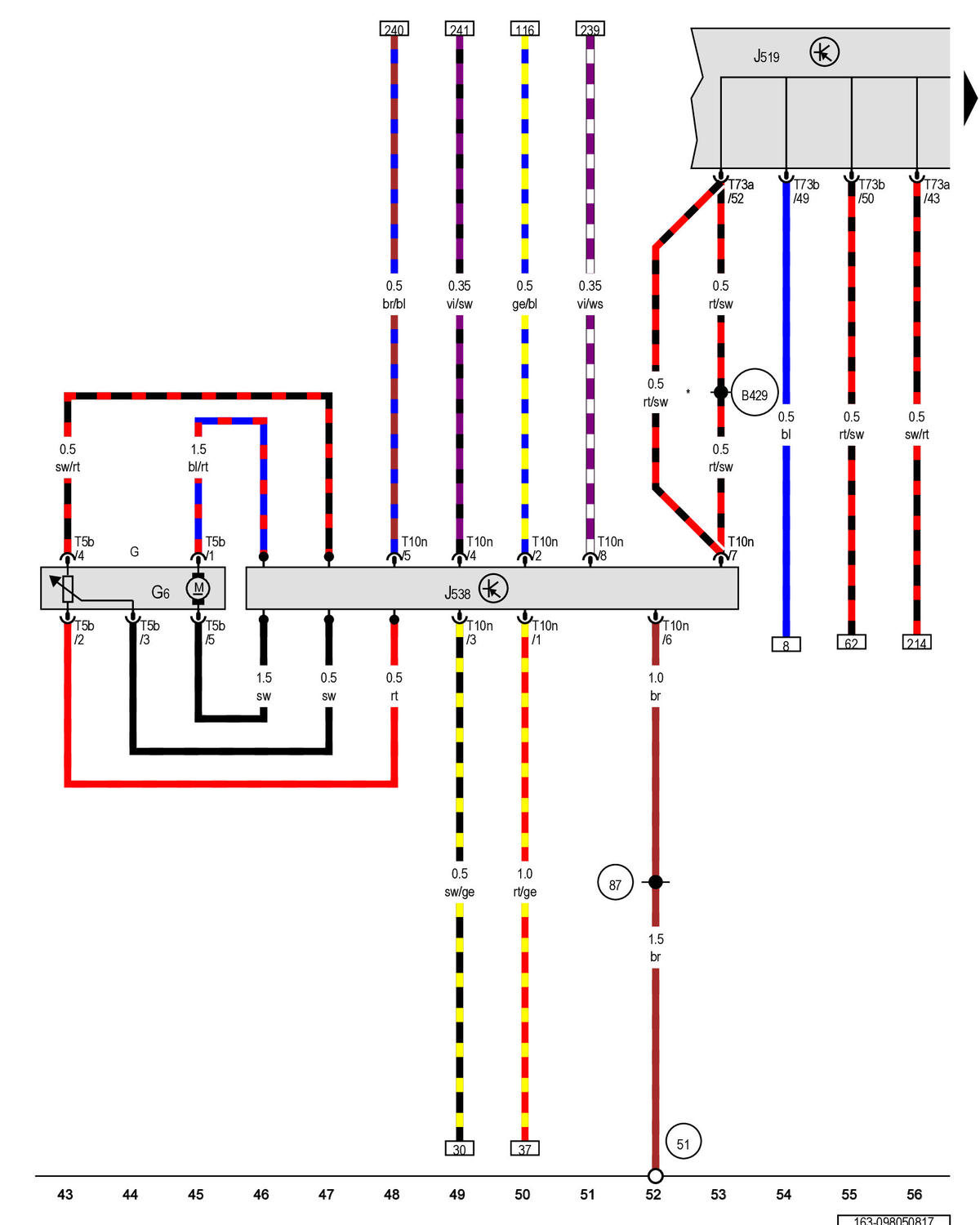

Fuel Level Sensor, Transfer Fuel Pump, Vehicle Electrical System Control Module, Fuel Pump Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G

Fuel Level Sensor

G6

Transfer Fuel Pump

J519

Vehicle Electrical System Control Module

J538

Fuel Pump Control Module

T5b

5-Pin Connector

T10n

10-Pin Connector

T73a

73-Pin Connector

T73b

73-Pin Connector

Ground Connection in Luggage Compartment, Right

Ground Connection 2 (in Rear Wiring Harness)

Fuel Pump Relay Connection (in Main Wiring Harness)

*From July 2016
